EV charger repair and AMC: portable, wall-box, AC and DC chargers

Star Automations repairs EV chargers at board level in India, from portable and wall-box units to DC fast-charger power modules and control boards. Charge-point operators and fleets can also take an annual maintenance contract (AMC) for failed units. Send the charger model, fault and photo on WhatsApp +91 97866 22233 for a repair quote and a tested return. Star Automations is an independent multi-brand repair company and is not an OEM service centre.

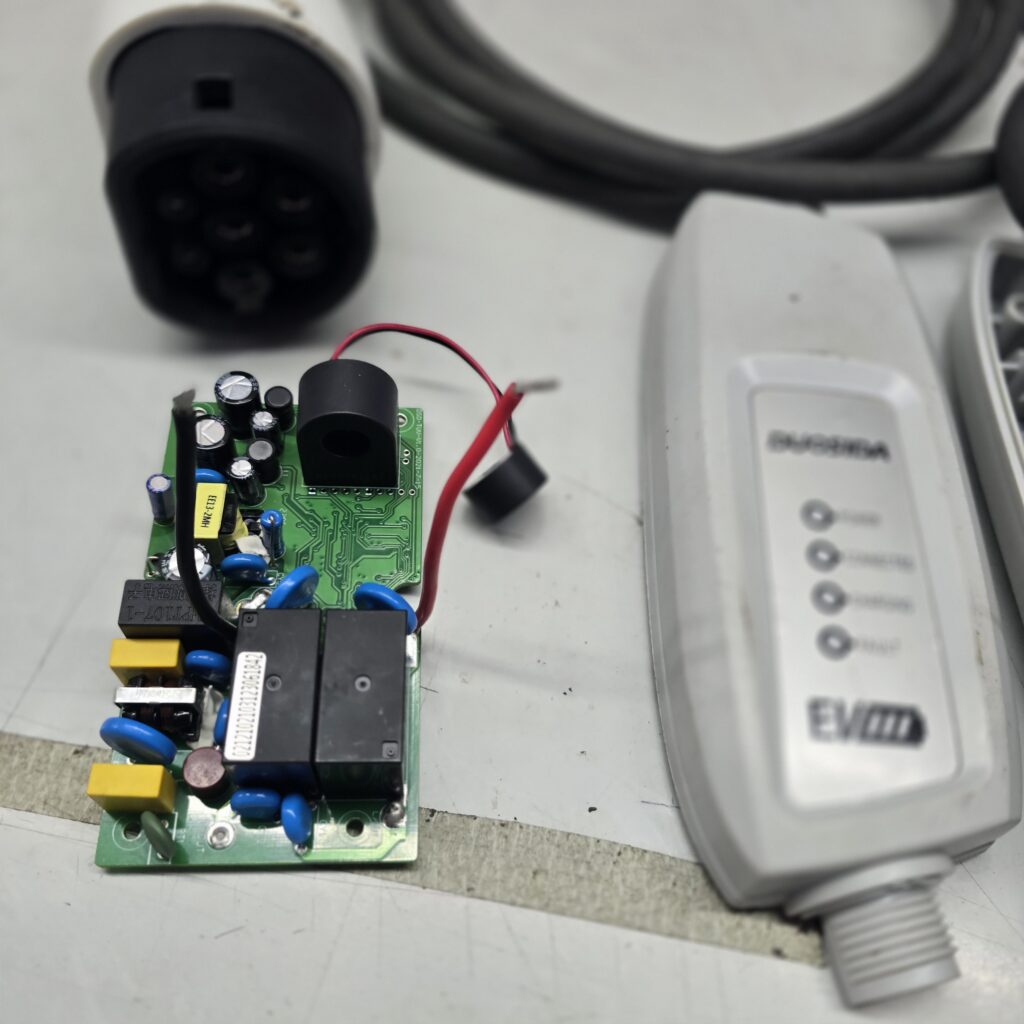

Portable EV charger control board out of its enclosure beside the charging cable and plug
A charger control board on the bench for component-level repair.

Repair, exchange or new charger: which fits?

Repairing a charger at board level is usually quicker than replacing the whole unit, because most faults are on the control board or the power stage. The table compares the three usual options for a failed EV charger.

OptionWhat you getWhen it fits
Repair at Star AutomationsThe failed part on the board is found and replaced, and the charger is load tested.The unit is otherwise sound and the fault is on a board.
Exchange or tested spare (where available)A tested replacement board or unit.The charger must be back in service first and the old unit can be returned.
New replacement from the brandA new charger on the brand's own terms.Repair is not feasible, or the unit is no longer worth repairing.
01Repair

Common charger faults we repair

A dead charger parks the vehicle, and the usual answer is a new unit. Most failures sit on the control board or the power stage, and those can be traced and repaired.

No power or no indicator

Dead chargers: input stage, auxiliary supply and control board checked separately.

Charging starts, then stops or trips

Protection trips traced to the failed sensing, driver or power part.

Plug-detect or pilot-signal fault

Control-board faults that stop the charger from recognising the vehicle.

Relay or contactor not closing

Relay drive circuits and output switching parts tested and replaced.

Overheating

Heat-damaged boards, thermal sensors and cooling parts.

Damaged cable, plug or connector

Cable and connector faults separated from board faults.

Units we repair

  • Portable EV chargers with in-cable control box
  • AC wall-box charger control boards
  • Two- and three-wheeler EV chargers
  • E-rickshaw and e-cart chargers
  • Charger power and control PCBs
  • DC-DC converter boards

Star Automations is an independent multi-brand repair company and is not an OEM service centre. Send the make and model and we confirm before you ship. Send units disconnected from the mains and from the vehicle.

02At the bench

How the repair is done

Faults are traced on the board, not guessed at. Failed parts, including surface-mount ICs, are removed and refitted at the SMD rework station.

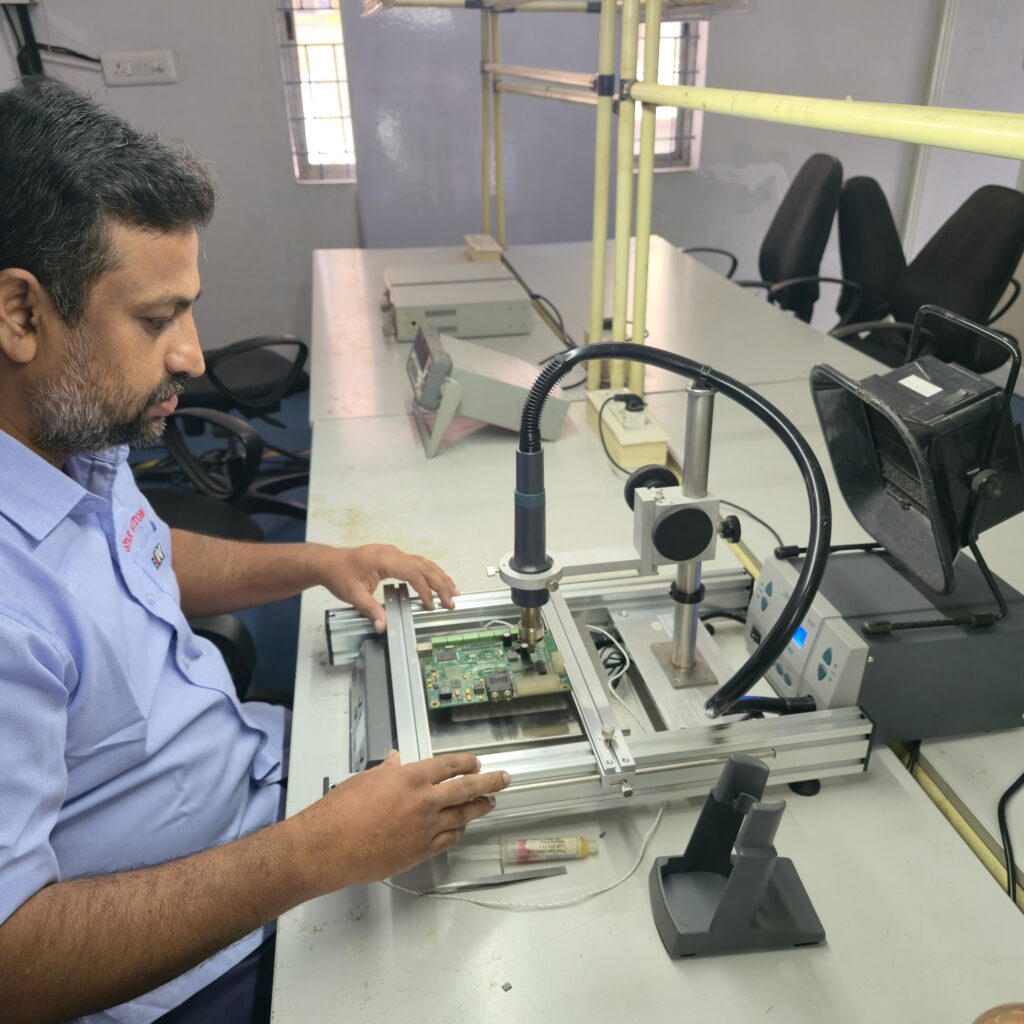

Star Automations technician at the SMD rework station with a microscope arm
SMD rework station for removing and refitting ICs.

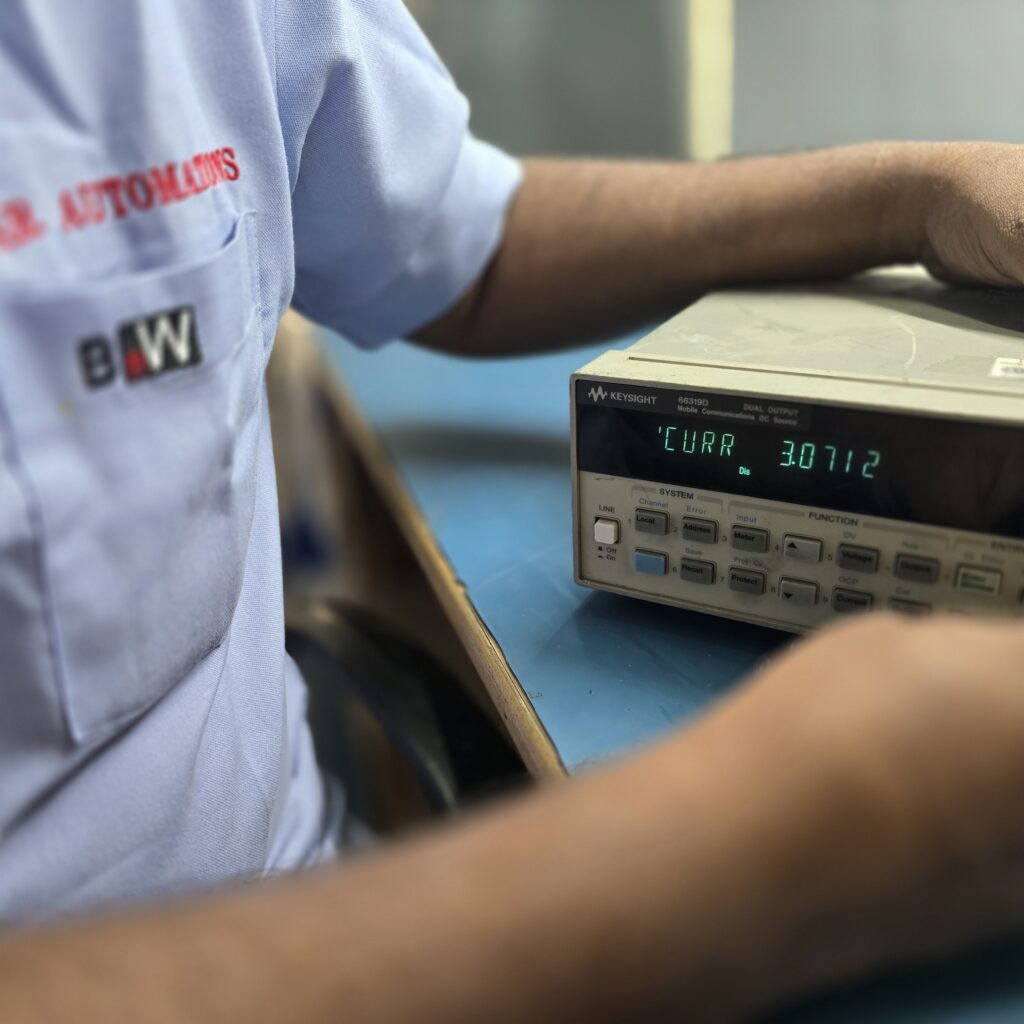

Star Automations technician operating a bench instrument during a functional check
Functional check at the test bench.
03Who it is for

Who sends us these units

EV dealers and service networks

Failed chargers returned under service, repaired instead of replaced.

Fleet and charging-point owners

Mixed chargers across sites, with a need to keep them in service.

Two-wheeler and e-rickshaw operators

Single failed chargers and repeat batches from one depot.

04Process

From model number to tested unit in five steps

Findings come before repair.

  1. Send the model

    Make, model, fault and a photo, on WhatsApp or the request form.

  2. Courier or pickup

    Send the unit disconnected from the mains and the vehicle. Pickup can be arranged.

  3. Findings

    Findings first: the failed part and the repair options, before any work is approved.

  4. Repair and functional check

    Repair on your approval, then a power-up and functional check on the functions the fault affected.

  5. Report and dispatch

    Printed report with findings, parts replaced and test readings, sent back with the unit.

EV charger AMC for charge-point operators and fleets

Charge-point operators and fleets can take an annual maintenance contract for their chargers. The AMC covers board-level repair of failed units, so a down charger goes to one partner and comes back tested. The scope is written on the quote.

AMC elementWhat it covers
Board-level repairFailed AC and DC charger boards repaired at component level.
Tested returnEach repaired unit is load tested before it is returned.
One contactOne WhatsApp number for all your chargers and sites.
Fault recordsRepair findings noted for each unit, so repeat faults can be traced.
ScopeWritten on the quote for your fleet or network.

Ask about an AMC on WhatsApp

Charger uptime checklist

These routine checks keep AC and DC chargers available. Do them on a schedule and keep a fault log. They are general good practice and do not replace the maintenance manual of the charger maker.

How oftenCheck
DailyLook over the cable and connector for damage, check the display and indicator lights, and clear any fault shown.
MonthlyInspect the connector pins and the cable strain relief, check earthing connections, clean the fans and filters, and read the fault log.
YearlyCheck torque on power terminals, check the earth and insulation condition, inspect internal boards for dust and heat marks, and test the unit under load.
After any faultNote the fault code, the date and what was done. Send the charger model and fault code to us if the same fault repeats.

EV charger repair for overseas customers

Charger owners, fleet operators and service companies outside India can courier charger boards or units to us. We check repairability first, repair, test and ship back worldwide, with export documentation handled. For board-level faults see PCB repair.

05Questions

EV charger repair questions

More on the FAQ page.

Do you offer an AMC for EV chargers?

Yes. Charge-point operators and fleets can take an annual maintenance contract covering board-level repair of failed units. The scope is written on the quote.

Do you repair DC fast chargers?

We repair DC charger power modules, control boards and auxiliary power supplies at component level. Send the model and the fault code first so we can confirm before shipping.

How are repaired chargers tested?

Repaired chargers and charger boards are tested on our electronic load test setup before return, and each repair carries a warranty. The warranty terms are on the quote.

What should I send for a quote?

Send the charger make and model, the serial label photo, the fault or error shown, and the number of units. WhatsApp +91 97866 22233 or use the contact form.

Do you repair e-rickshaw and e-scooter chargers?

Yes. Small-vehicle chargers are repaired at the board level.

Can you repair my portable EV charger?

Yes. Star Automations repairs portable EV chargers with an in-cable control box, AC wall-box charger boards and small two- and three-wheeler chargers. Send the make, model, the fault and a photo and we confirm repairability before you ship.

Can you repair a charger board without the enclosure?

Yes. The control board can be sent on its own if you remove it safely, or you can send the whole charger. Send the unit disconnected from the mains and from the vehicle.

How is the charger checked after repair?

After repair, each unit gets a power-up and functional check on the functions the fault affected, and the readings go into the printed report. Star Automations does not issue a safety or type-approval certificate.

Is Star Automations an OEM service centre?

Star Automations is an independent multi-brand repair company and is not an OEM service centre.

How fast can a repair be done?

Emergency same-day, urgent 3 working days and standard 7 working days are available where the fault and parts allow. The timeline is stated on the quote.

Also repaired at Star Automations: power electronics, e-mobility and solar

The same bench that repairs servo drives and VFDs also repairs the power electronics in inverters, UPS units, EV chargers and BMS boards. Send the model and fault and we confirm repairability before you ship.

UPS repair

Online, line-interactive and industrial UPS boards.

Send the charger model and the fault.

WhatsApp or call +91 97866 22233, or email info@starautomations.com.

+DC chargers

DC EV charger board repair

Have a DC EV charger board with an error code? Send the error code and a photo of the board. We give you a quote, and confirm repairability before you ship. Star Automations does not issue a safety or type-approval certificate. Get a quote or WhatsApp the error code and board photo.

Free check: what to send

  • Label photo of the charger or board
  • Fault or error code shown
  • Charger type (AC, portable, DC fast) and make
  • Whether the unit is outdoor or fleet-installed
  • Quantity if you operate several chargers

Send the charger model and fault

Name, contact and a charger model or label photo is enough to start. We confirm whether it is repairable before you ship anything.
