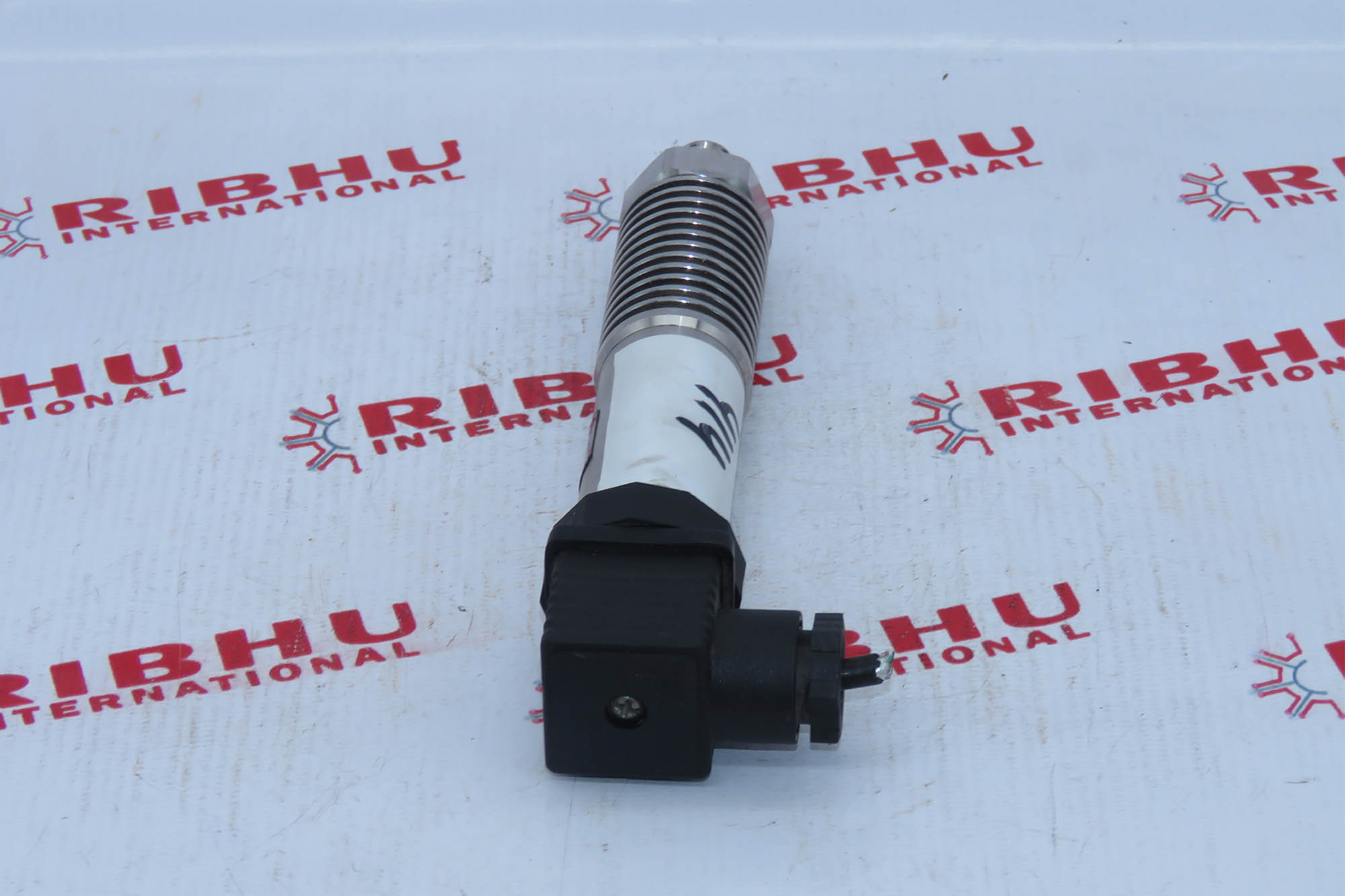

SPL-50017-20 bar | SPL Life Sciences | 30 bar | 12-24 VDC

General Information:

• Part Number: SPL-50017-20
• Type: Pressure Sensor

Pressure Measurement:

• Pressure Range: 0 to 20 bar
• Pressure Type: Gauge (relative to atmospheric pressure)
• Accuracy: ±0.5% of full scale
• Resolution: 0.01 bar
• Overpressure Limit: 30 bar

Electrical Specifications:

• Power Supply:
  • Voltage: 12-24 V DC
  • Current Consumption: ≤ 20 mA
• Output Signal:
  • Analog Output: 4-20 mA or 0-10 V
  • Digital Output: Optional, e.g., RS485 or CAN bus

Mechanical Specifications:

• Dimensions:
  • Body Diameter: 25 mm
  • Length: 50 mm (excluding connectors)
• Weight: 150 grams
• Process Connection:
  • Thread Size: 1/4″ NPT or G1/4
  • Material: Stainless Steel 316
• Enclosure Material: Stainless Steel
• Sealing Material: Viton or EPDM O-ring

Environmental Specifications:

• Operating Temperature Range: -20°C to 80°C
• Storage Temperature Range: -40°C to 100°C
• Humidity: 0% to 95% RH non-condensing
• Protection Rating: IP67

Performance Specifications:

• Response Time: < 10 ms
• Stability: ±0.2% of full scale per year
• Temperature Coefficient: ±0.03% of full scale/°C
