Measurement range: 0.2 … 8 m
Reference target: Kodak white (90%)
Light source: laser diodetyp. service life 85,000 h at Ta = +25 °C
Light type: modulated visible red light
Laser class: 2
Wave length: 660 nm
Beam divergence :1 mrad
Pulse length: 5 ns
Repetition rate: 250 kHz
max. pulse energy: < 4 nJ
Angle deviation: max. ± 2°
Diameter of the light spot: < 10 mm at a distance of 8 m at 20 °C
Ambient light limit: 50000 Lux
Temperature influence: typ. ≤ 0.25 mm/K
-9%
Siemens | 6SL3040-0PA00-0AA1 | Control Unit adapter | 0.6 AMP | 24 VDC
Original price was: ₹20,900.00.₹19,000.00Current price is: ₹19,000.00.
295670-100253 | Pepperl+Fuchs | Signal Converter | 24V DC |
Original price was: ₹12,782.00.₹11,620.00Current price is: ₹11,620.00.

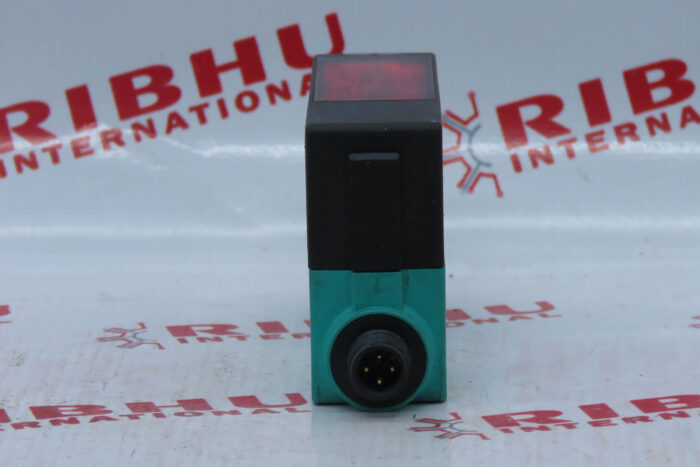

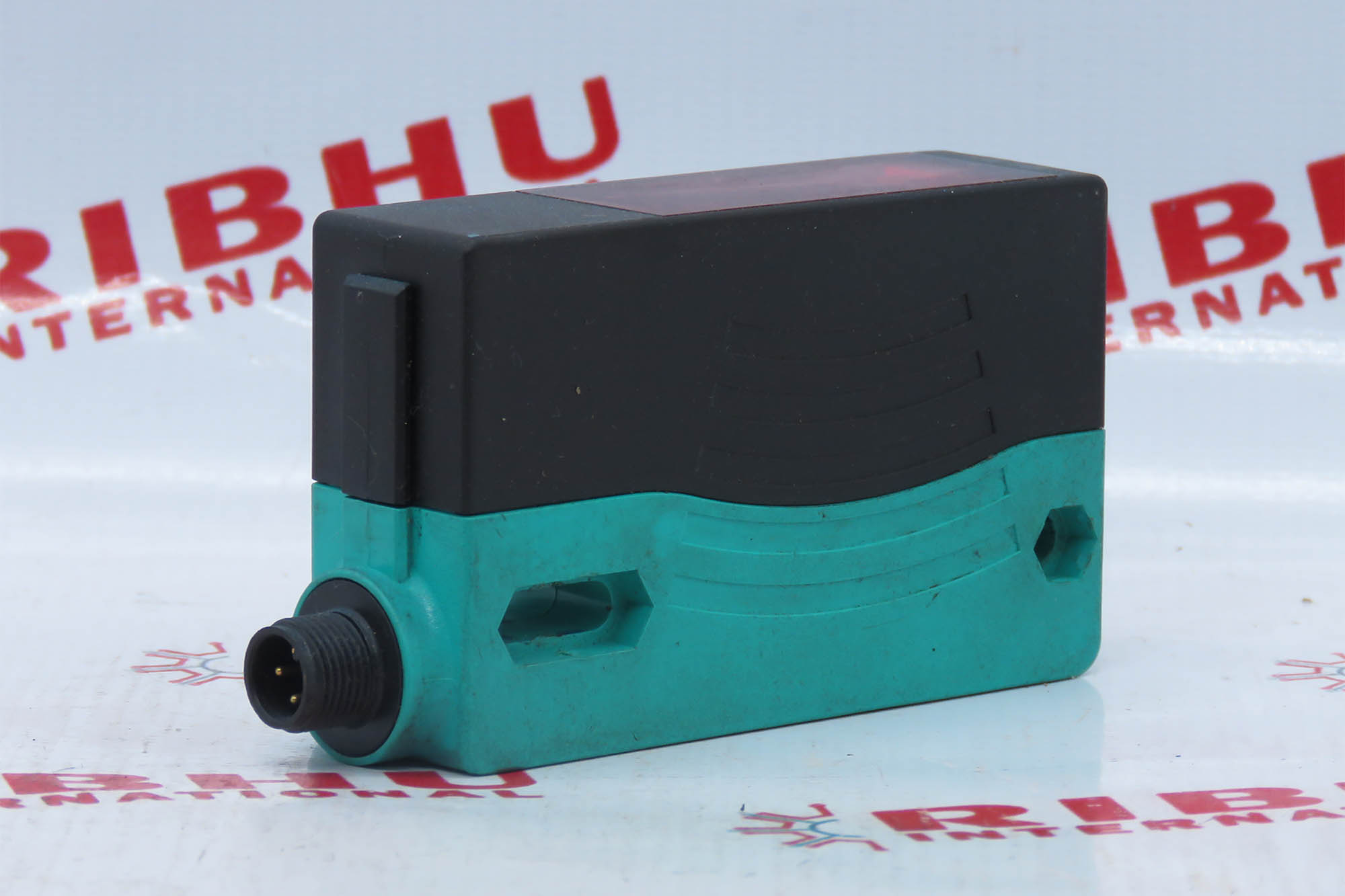

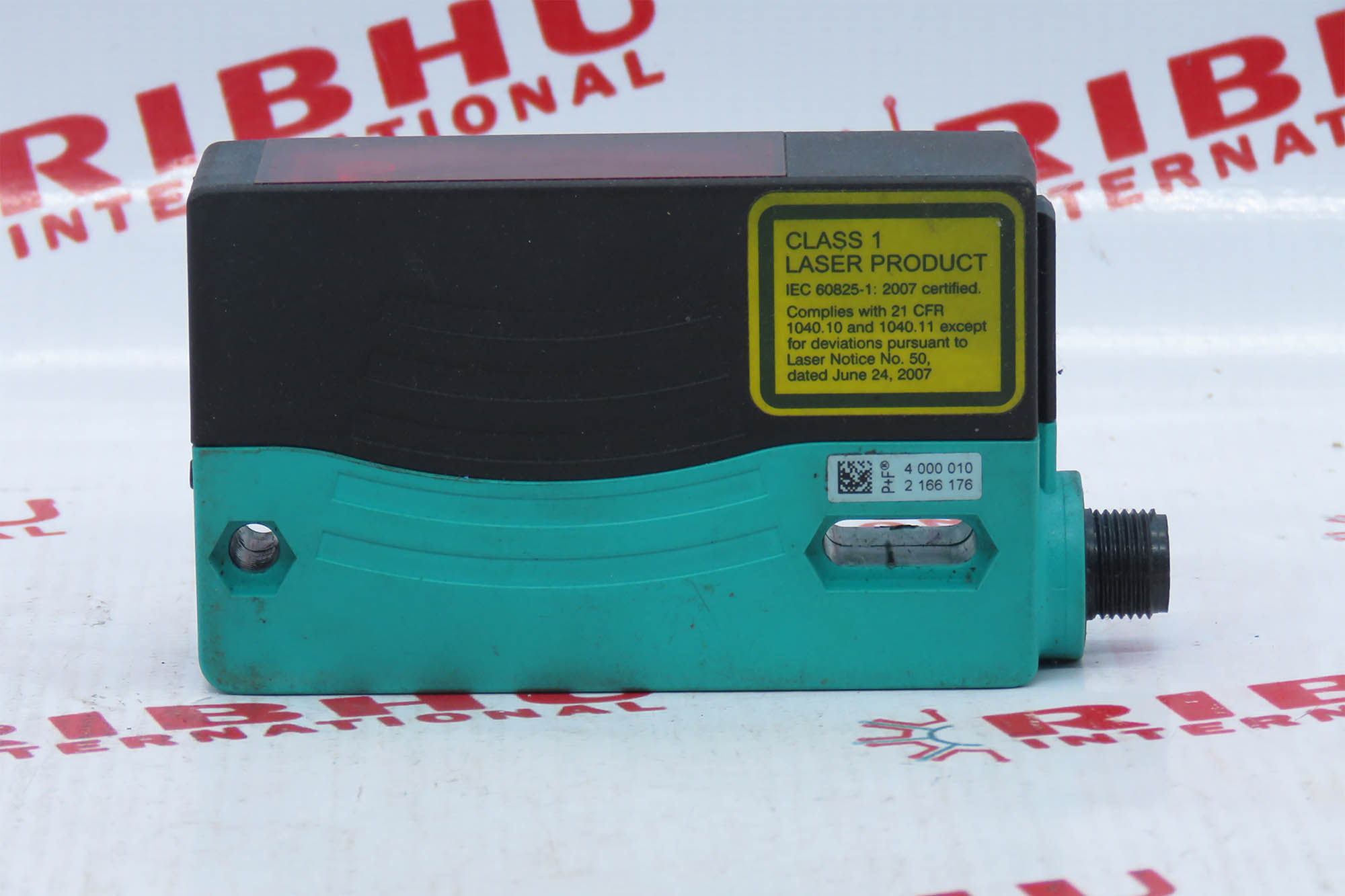

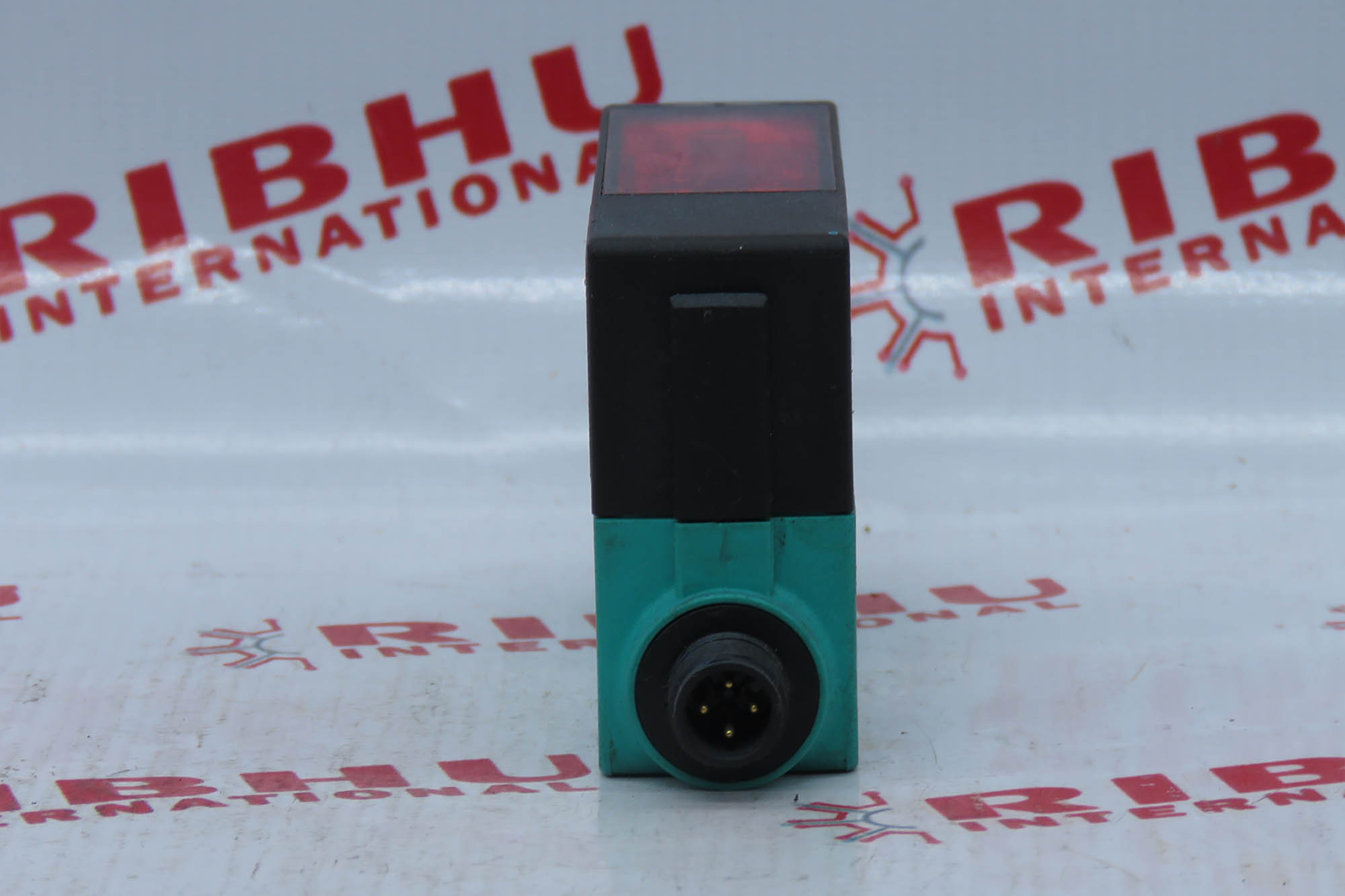

232763 | Pepper+fuchs | 1 mrad | 250 kHz
Original price was: ₹13,695.00.₹12,450.00Current price is: ₹12,450.00.
| Brands |
Pepper+fuchs |
|---|---|
| Conditions |
Refurbished |
