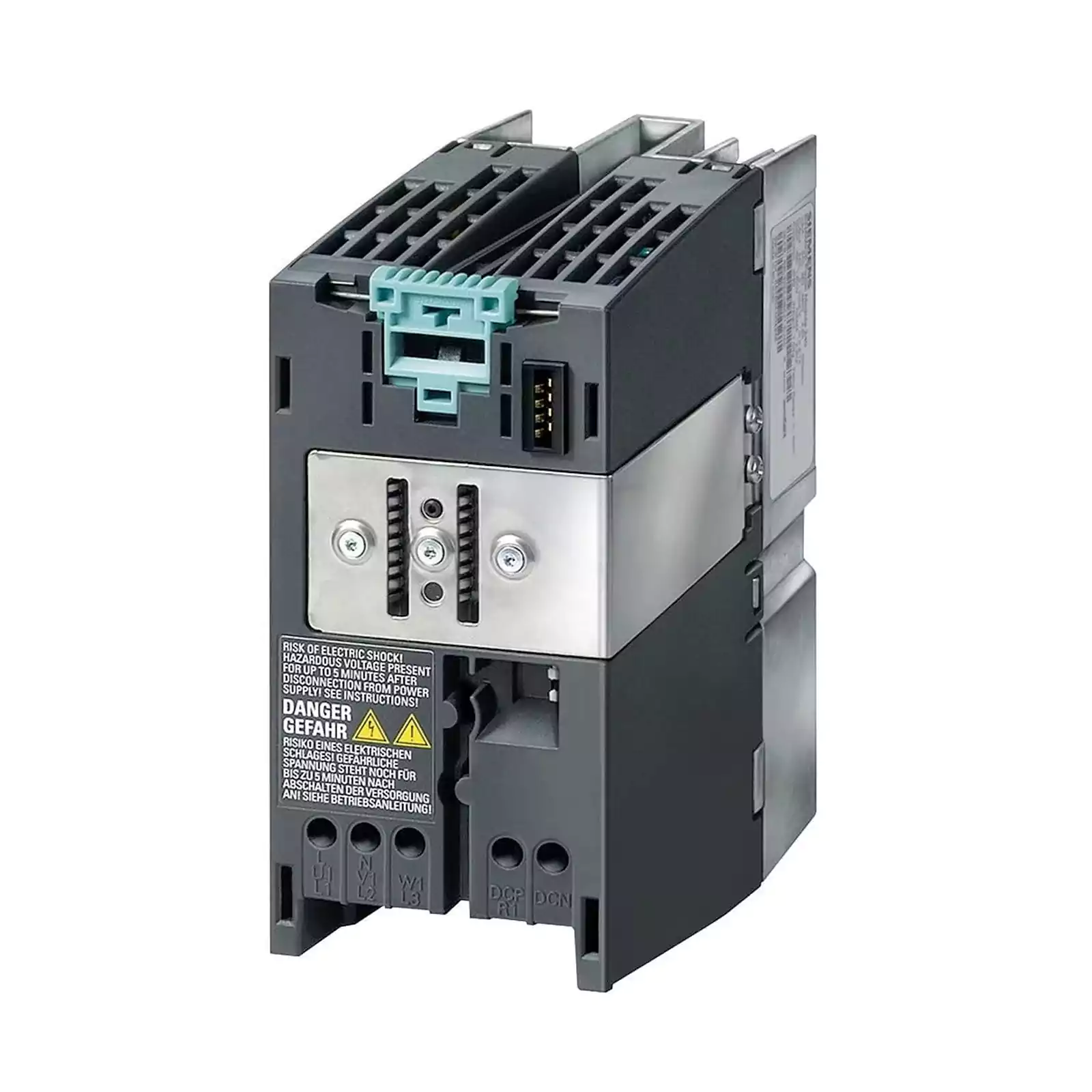

Siemens 6SL3 224-0BE17-5UA0 Drives

Specification

Brand:Siemens
Model: 6SL3 224-0BE17-5UA0
Type: Drives
Product Type: Power Module
Rated Output Current: 75 A
Power Output: 37 kW (50 HP)
Input Voltage: 3-phase, 380 V to 480 V AC, ±10%
Output Voltage: 3-phase, 0 V to Input Voltage
Frequency: 47 Hz to 63 Hz
Control Method: Vector control with encoder, vector control without encoder, V/f control
Protection Rating: IP20
Cooling: Internal air cooling
Ambient Temperature: -10 °C to 50 °C
Dimensions (W x H x D): 275 mm x 481 mm x 263 mm
Weight: Approx. 18 kg
