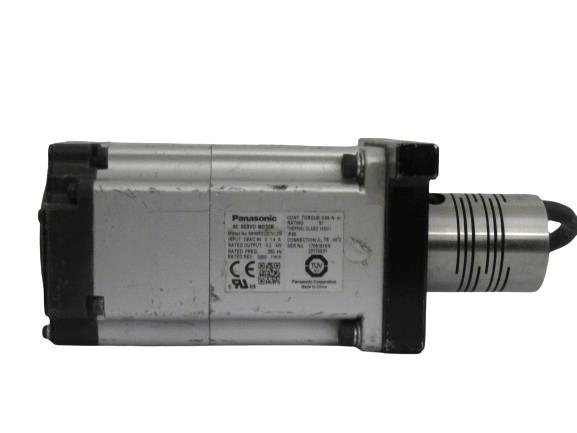

Panasonic MHMF022L1V2M Servo Motor

• Rated Output: 200 W
• Rated Speed: 3000 r/min
• Maximum Speed: 6500 r/min
• Rated Torque: 0.64 N?m
• Continuous Stall Torque: 0.76 N?m
• Momentary Maximum Peak Torque: 2.23 N?m
• Rated Current: 1.4 A (rms)
• Maximum Current: 6.9 A (o-p)
• Power Supply Capacity: 0.5 kVA
• Voltage Specifications: 200 V
• Protection Class: IP65 (except for the rotating portion of the output shaft and lead wire end)
• Environmental Conditions: Please refer to the instruction manual for details
• Flange Square Dimension: 60 mm
• Motor Lead-Out Configuration: Lead wire
• Motor Encoder Connector: Lead wire
• Rotary Encoder Specifications: 23-bit Absolute/Incremental system
• Moment of Inertia of Rotor: ( 0.31 times 10^{-4} ) kg?m?
• Recommended Moment of Inertia Ratio of the Load and the Rotor: 30 times or less
• Holding Brake: With
• Mass: 1.2 kg

Key Features:

Precision Performance: Provides accurate motion control and smooth operation, making it ideal for applications requiring fine positioning and detailed control.
Robust and Reliable: Built to withstand demanding conditions and continuous operation, ensuring long-term durability and consistent performance.
Compact and Efficient: Offers powerful performance within a space-efficient design, suitable for installations with limited space.
Energy Efficient: Optimizes power consumption while delivering high performance, contributing to cost-effective operations.
Seamless Integration: Easily integrates with Panasonic controllers and automation systems for a streamlined setup and enhanced operational efficiency.

FAQs:

What are the optimal applications for the Panasonic MHMF022L1V2M Servo Motor?

The MHMF022L1V2M is ideal for high-precision applications such as robotics, CNC machinery, and automated production systems.
What benefits does the MHMF022L1V2M offer?

The motor provides high precision, robust reliability, compact size, energy efficiency, and easy integration with Panasonic’s automation systems.
Can the MHMF022L1V2M be integrated with automation systems from other manufacturers?

Although optimized for Panasonic systems, the MHMF022L1V2M can often be integrated with other brands’ systems using suitable interfacing solutions.
