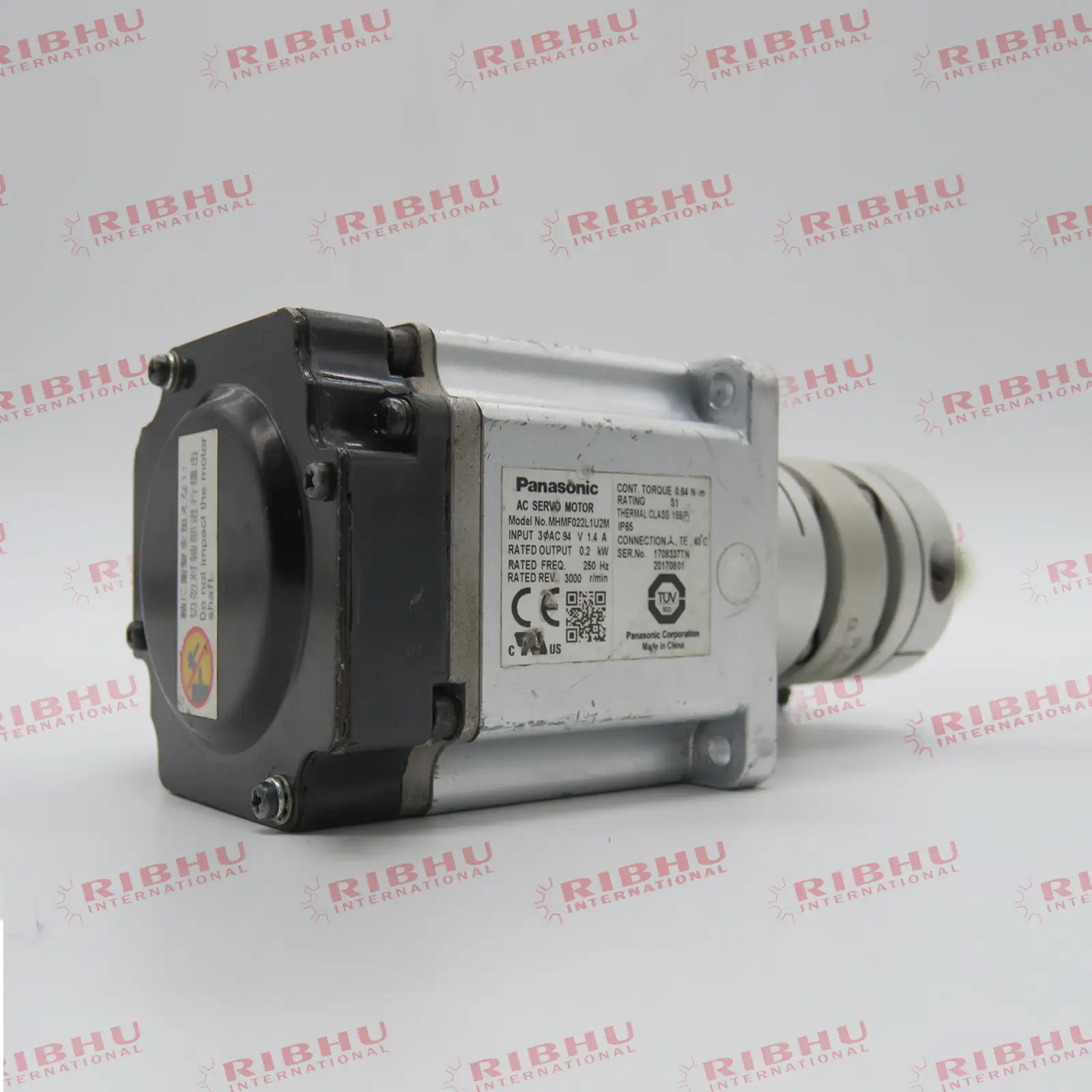

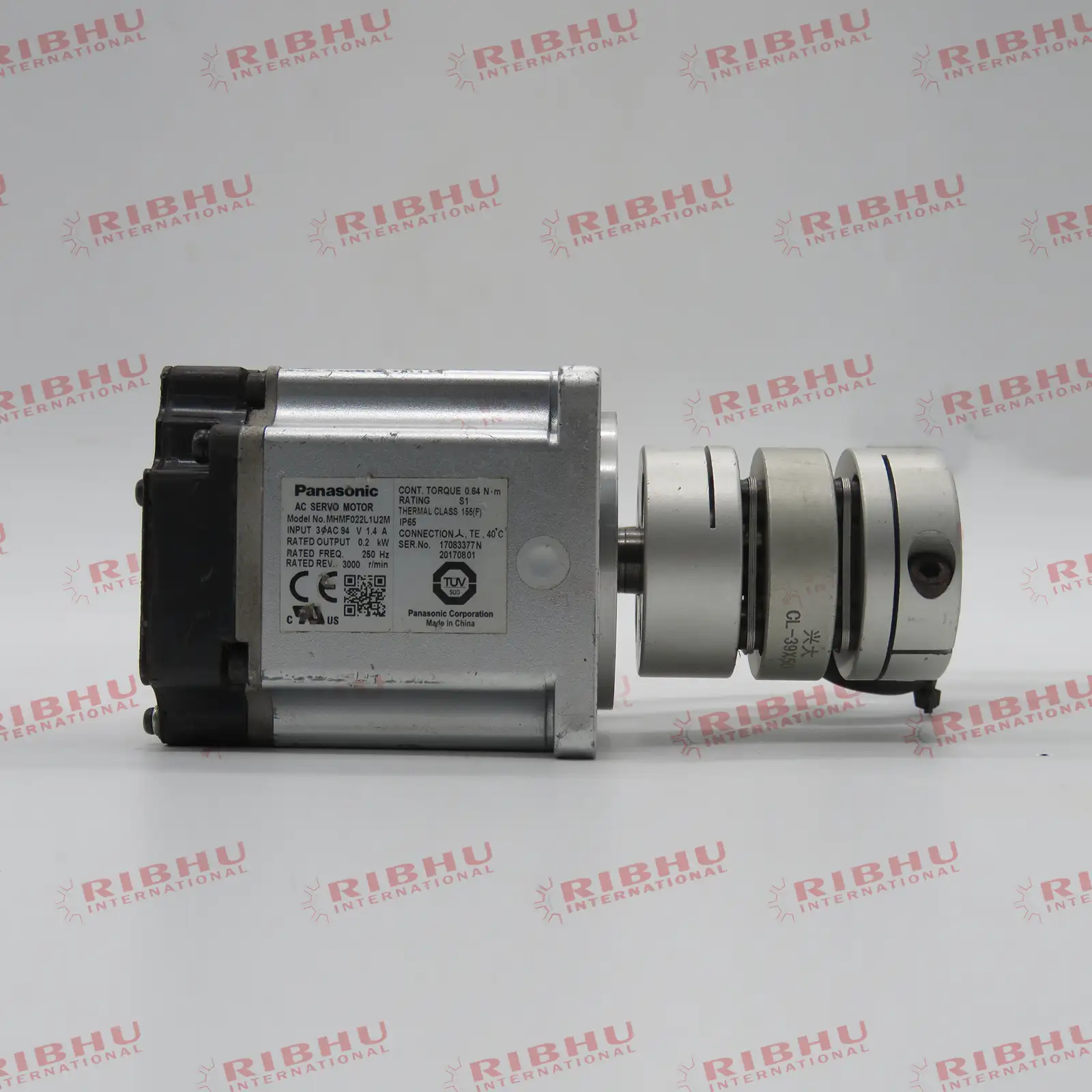

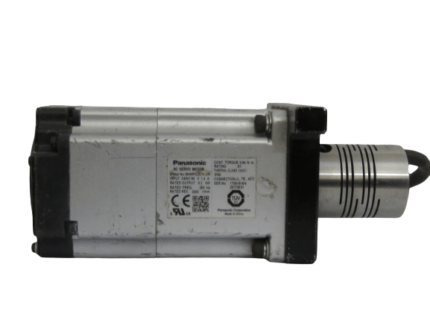

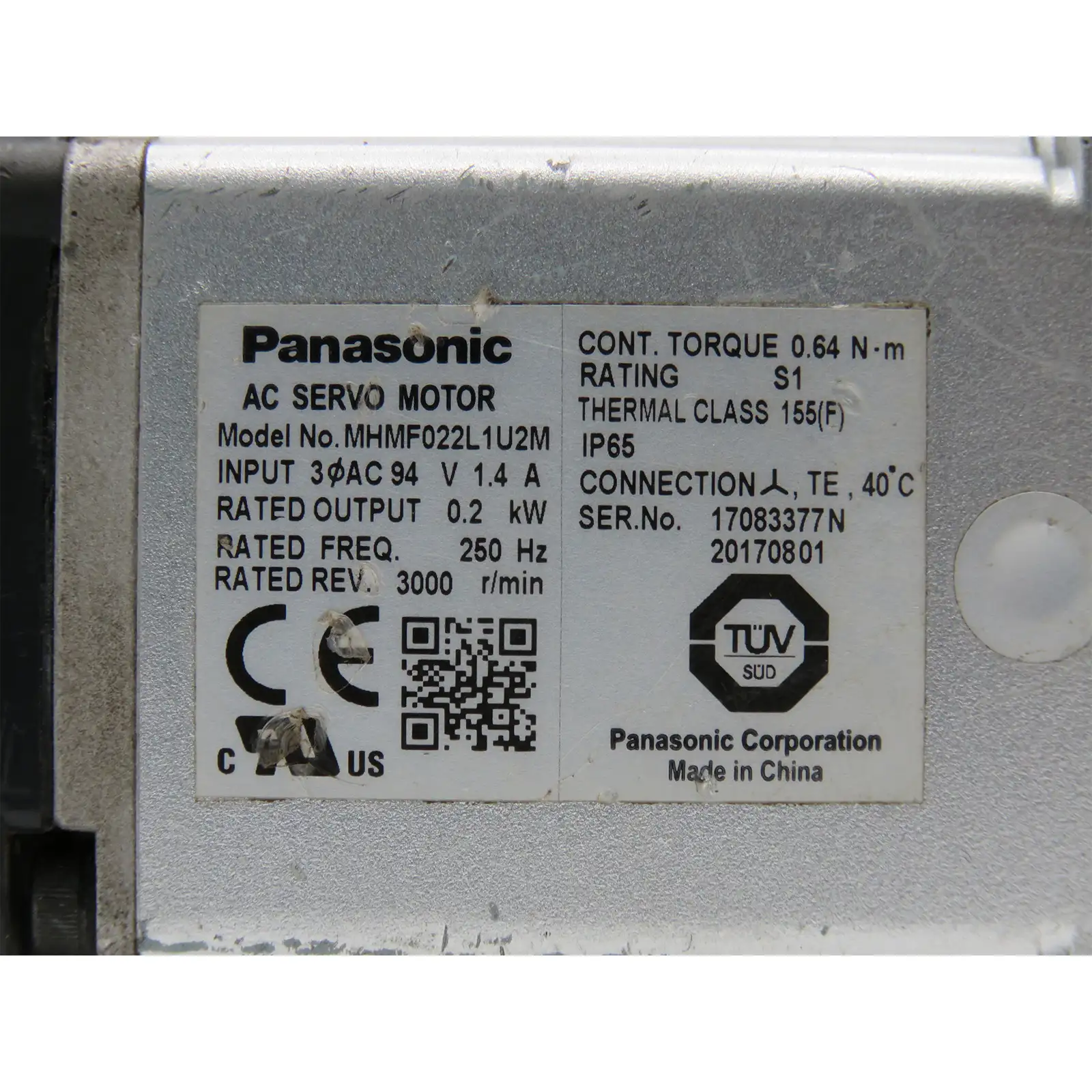

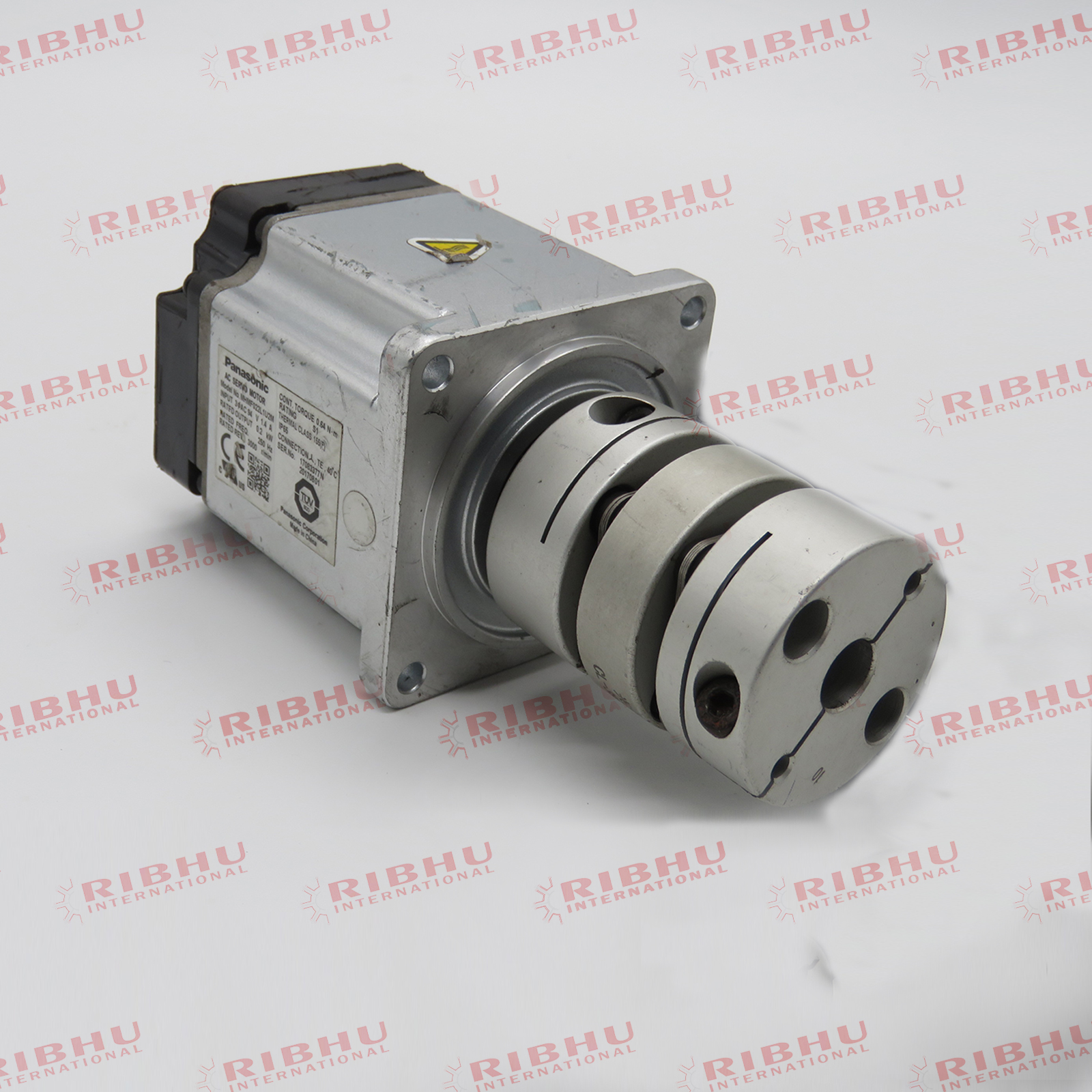

PANASONIC MHMF022L1U2M Servo Motor

• Rated Output: 200 W
• Rated Speed: 3000 r/min
• Maximum Speed: 6500 r/min
• Rated Torque: 0.64 N?m
• Continuous Stall Torque: 0.76 N?m
• Momentary Maximum Peak Torque: 2.23 N?m
• Rated Current: 1.4 A (rms)
• Maximum Current: 6.9 A (o-p)
• Power Supply Capacity: 0.5 kVA
• Voltage Specifications: 200 V
• Protection Class: IP65 (except for the rotating portion of the output shaft and lead wire end)
• Environmental Conditions: Refer to the instruction manual for details
• Flange Square Dimension: 60 mm
• Motor Lead-Out Configuration: Lead wire
• Motor Encoder Connector: Lead wire
• Rotary Encoder Specifications: 23-bit Absolute/Incremental system
• Moment of Inertia of Rotor: ( 0.29 times 10^{-4} ) kg?m?
• Recommended Moment of Inertia Ratio of the Load and the Rotor: 30 times or less
• Holding Brake: Without
• Mass: 0.78 kg
• Oil Seal: With
• Shaft: Key-way, center tap

Key Features:

High Precision: Ensures accurate motion control and positioning with minimal error.
Compact Design: Space-saving design ideal for integration into various machinery and equipment.
Robust Performance: Engineered for durability and consistent operation even in demanding environments.
Energy Efficient: Reduces power consumption while maximizing output performance.
Versatile Compatibility: Easily integrates with existing control systems for seamless operation.

FAQs:

1. What are the primary applications for the Panasonic MHMF022L1U2M Servo Motor?

The MHMF022L1U2M is suitable for applications in robotics, CNC machinery, automated manufacturing, and other precision-driven tasks.
2. What kind of maintenance does this servo motor require?

Regular checks for wear and tear, lubrication of moving parts, and ensuring proper electrical connections are recommended for optimal performance.
3. Can the Panasonic MHMF022L1U2M be used in harsh environments?

Yes, it is built to withstand various industrial conditions, but additional protective measures may be required for extreme environments.
4. How does the motor’s energy efficiency benefit my operations?

Enhanced energy efficiency translates to lower operational costs and reduced environmental impact, while still providing high performance.
