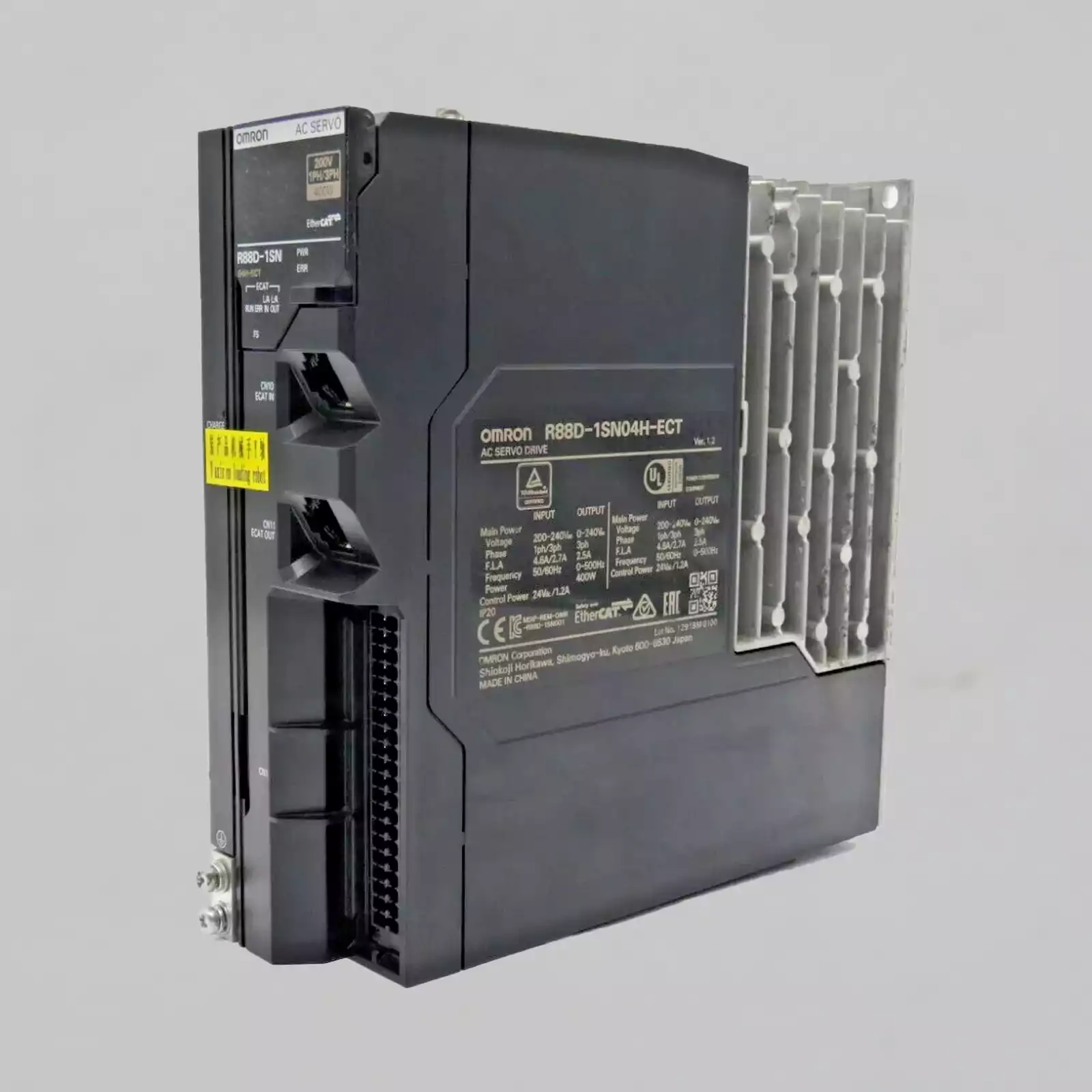

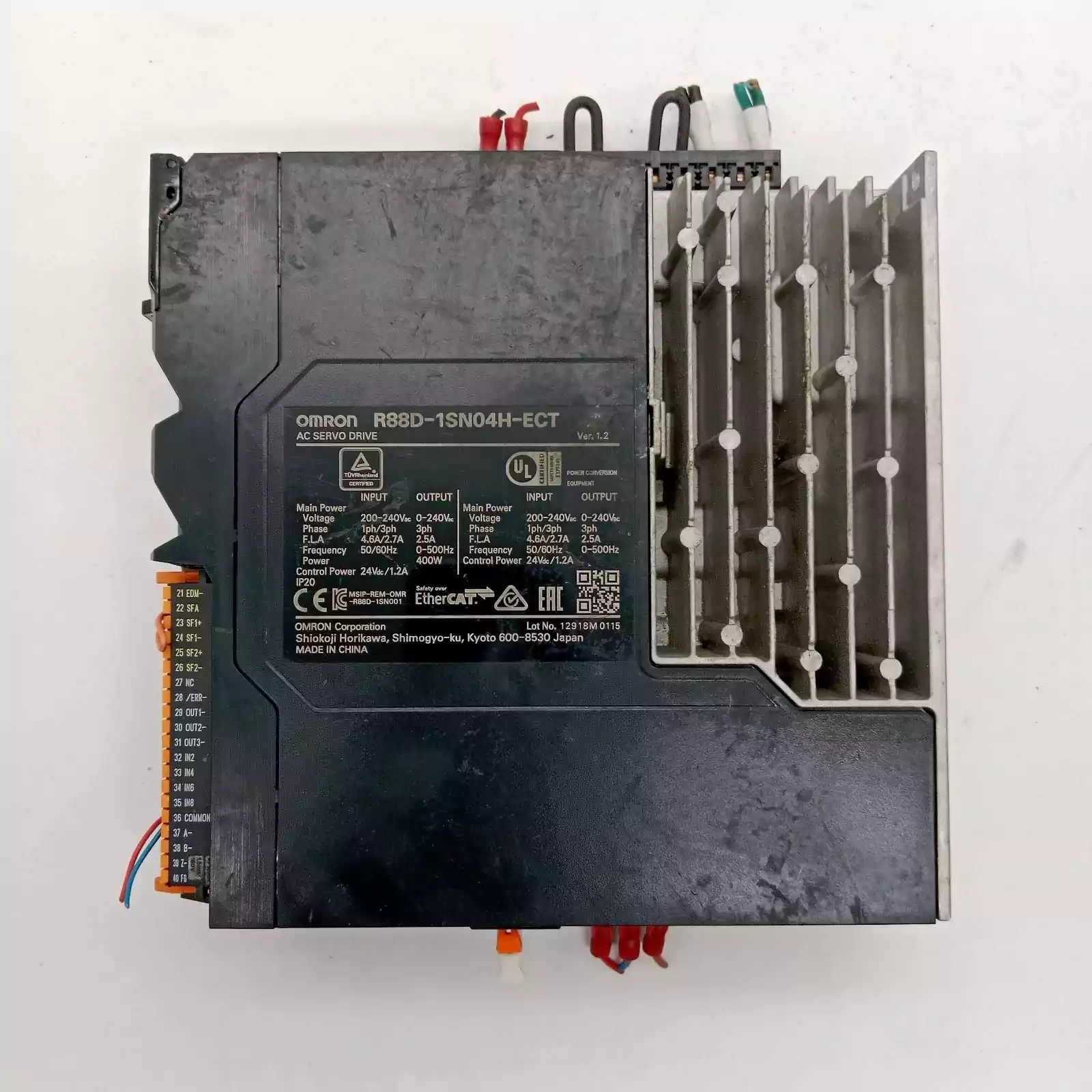

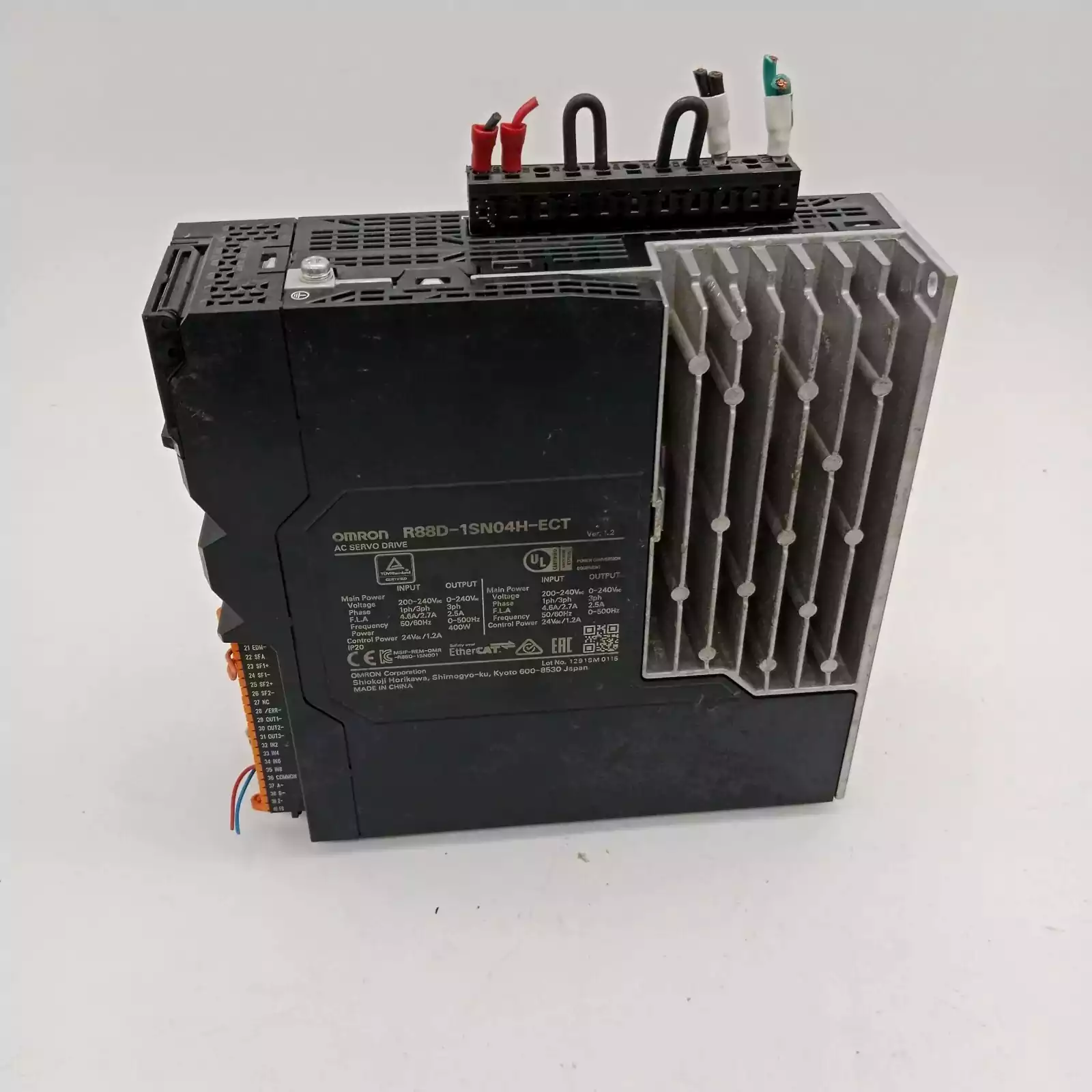

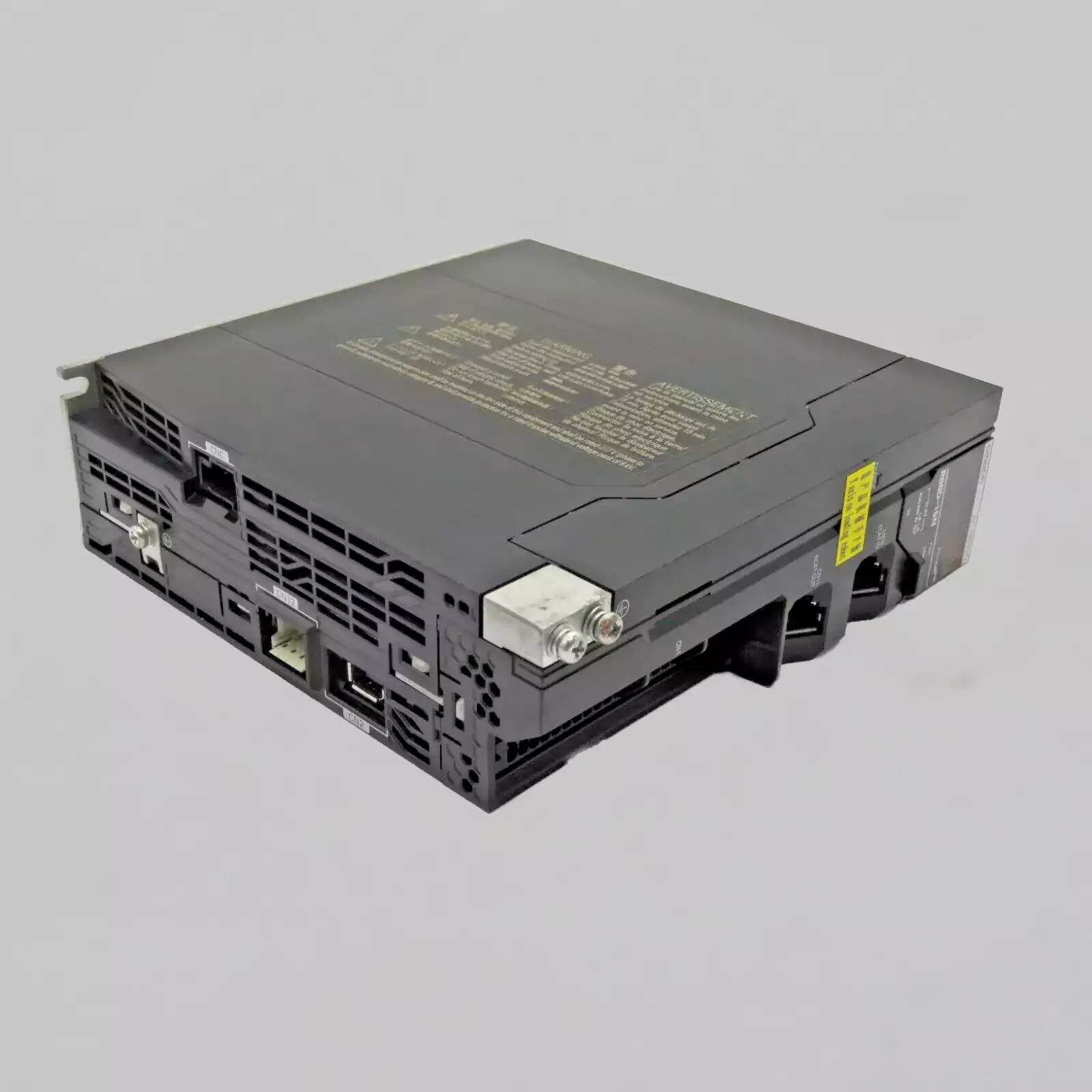

Omron Servo Drive R88D-1SN04H-ECT

• R88D1SN04HECT
• SERVO DRIVE
• 1S-SERIES
• ETHERCAT COQMMUNICATIONS
• 400 WATT
• 200 VAC

Specifications

Additional Specifications

• Servo control method: EtherCAT
• Drive supply voltage: 230 V single-phase
• Rated output: 0.4 kW
• Product dimensions: Height 223 mm, Width 55 mm, Depth 196.05 mm
• Product weight: 1500 g
• Operating ambient temperature: 0 to 55C
• Storage ambient temperature: -20 to 65C
• Protective structure: IP20 (Built into IP54 panel)
• Safety functions: Hardwired Safe Torque Off and Safety over EtherCAT (FSoE) with various safety levels
• Safety Functions:
  • STO Function via Safety Input Signals: EN ISO 13849-1 (Cat3 PLe), EN 61508 (SIL3), EN 62061 (SIL3), EN 61800-5-2 (STO)
  • STO Function via EtherCAT Communications: EN ISO 13849-1 (Cat.3 PLd), EN 61508 (SIL2), EN 62061 (SIL2), EN 61800-5-2 (STO)

Discover the Omron Servo Drive R88D-1SN04H-ECT, a state-of-the-art servo drive designed to enhance the precision and efficiency of your automation systems. At Ribhu International, we provide the latest in servo drive technology to meet your industrial needs. The R88D-1SN04H-ECT offers unparalleled performance, flexibility, and reliability, making it an ideal choice for various applications.

Key Features

1. High Precision Control: Achieve exceptional accuracy with Omron’s advanced servo control algorithms.
2. EtherCAT Communication: Seamless integration with EtherCAT networks for high-speed data transfer and real-time control.
3. Compact Design: Space-saving design that fits easily into your control panel.
4. Flexible Configuration: Supports a wide range of motors and feedback devices for versatile application.
5. Built-in Safety Features: Enhanced safety with built-in STO (Safe Torque Off) functionality.
6. Easy Setup and Tuning: Simplified setup process with intuitive software for quick and efficient tuning.
7. Energy Efficient: Designed for optimal energy consumption to reduce operational costs.
8. Robust Construction: Durable build quality to withstand harsh industrial environments.
9. Wide Operating Range: Suitable for a variety of applications with extensive input and output options.
10. Remote Monitoring: Capabilities for remote diagnostics and maintenance, ensuring minimal downtime.

FAQ

Q1: What is the power rating of the Omron Servo Drive R88D-1SN04H-ECT?

• The R88D-1SN04H-ECT has a power rating of 400W, making it suitable for various medium-power applications.

Q2: Can the R88D-1SN04H-ECT be used with different types of motors?

• Yes, this servo drive supports a wide range of motors, including rotary, linear, and direct drive motors.

Q3: How does EtherCAT communication benefit my automation system?

• EtherCAT provides high-speed, real-time communication, which enhances the responsiveness and synchronization of your automation system.

Q4: Is there any software required for setting up the servo drive?

• Yes, Omron provides intuitive software that simplifies the setup and tuning process, allowing for quick and efficient configuration.

Q5: What safety features are included in the Omron Servo Drive R88D-1SN04H-ECT?

• The servo drive includes built-in Safe Torque Off (STO) functionality, ensuring enhanced safety during operation.
