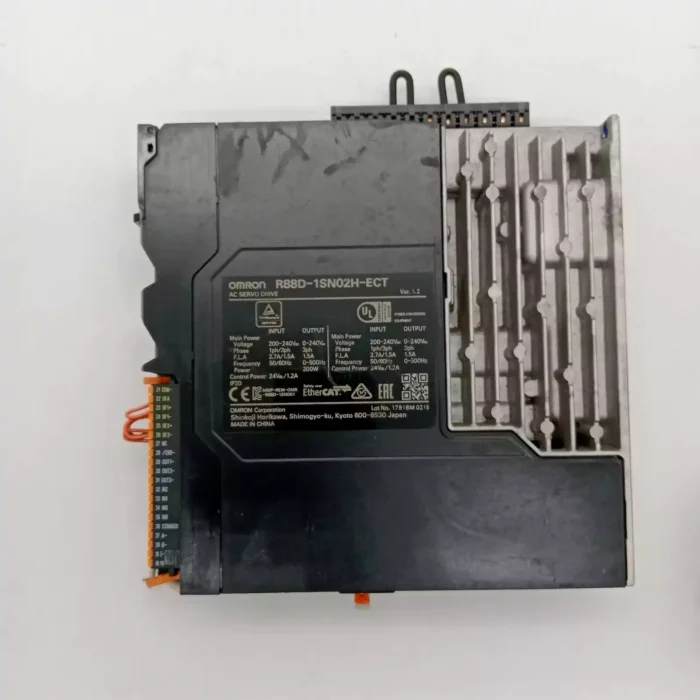

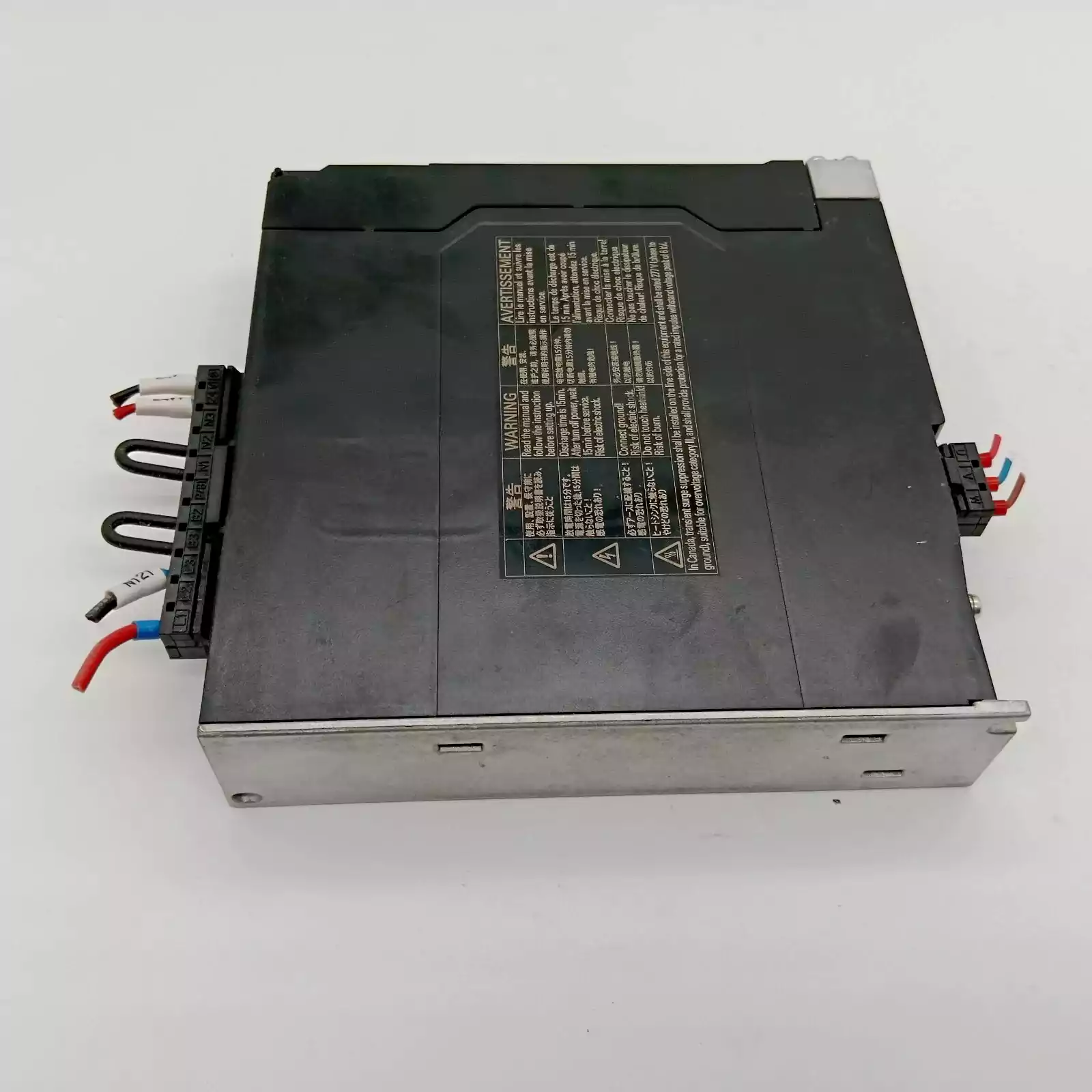

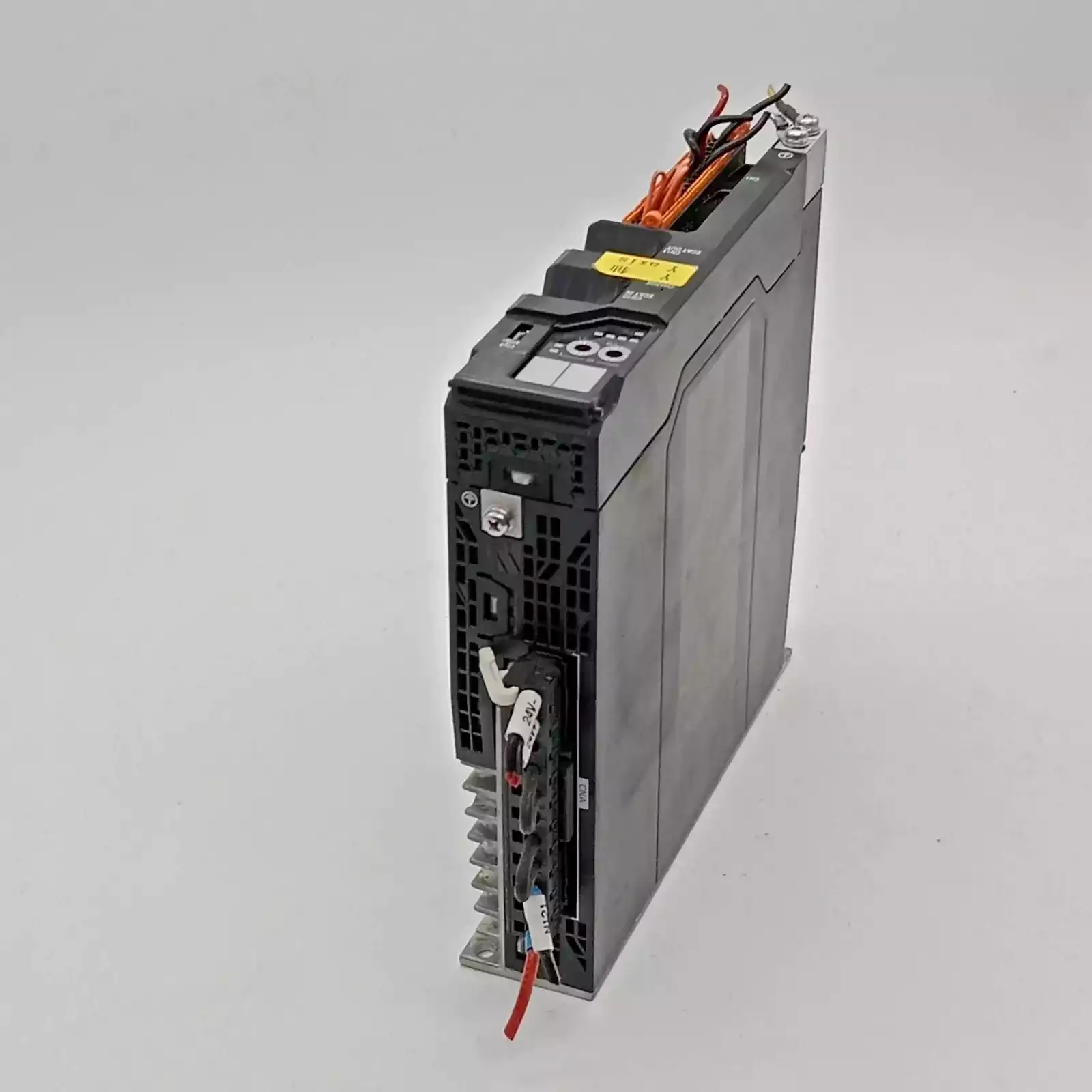

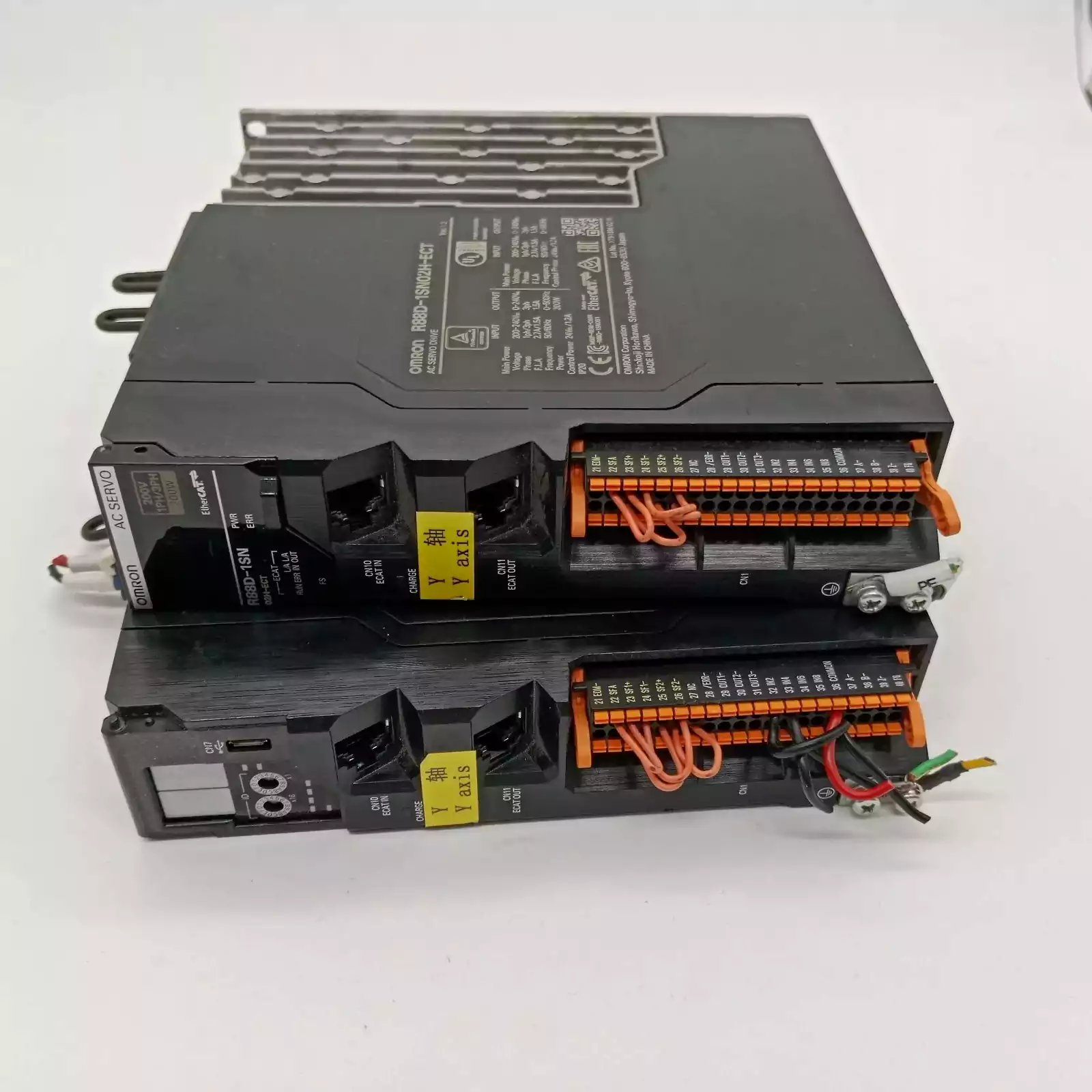

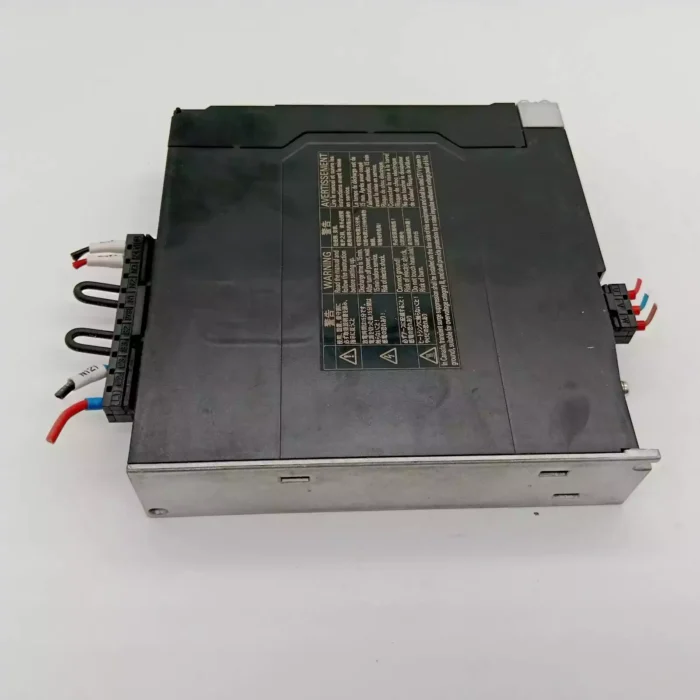

Omron Servo Drive R88D-1SN02H-ECT

• R88D1SN02HECT
• SERVO DRIVE
• 1S-SERIES
• 200 WATT
• 200 VAC
• ETHERCAT COMMUNICATIONS

Specifications

1. Additional Information
   • Servo Control Method: EtherCAT
   • Drive Supply Voltage: 230 V single phase
   • Rated Output: 0.2 kW (200 W)
   • Output Type: Digital (Relay)
   • Maximum Output Current per Point: 0.5 A @ 60C
   • Maximum Output Current per Module: 4.0 A @ 60C
   • Power Dissipation (Max): 3.4 W @ 26.4V DC
   • Bus Current Draw (Max): 175 mA @ 5V DC
   • Signal Delay (Resistive Load):
     • On Delay: 0.5 ms
     • Off Delay: 4.0 ms
   • Isolated Groups:
     • Group 1 (Outputs 015)
     • Group 2 (Outputs 1631, internally connected to common)
   • Output Group to Backplane Isolation:
     • Verified by dielectric tests: 1200V AC for 2 seconds or 1697V DC for 2 seconds (IEC Class 2 reinforced insulation)
   • Redundancy: No
   • Short-Circuit Protection (Outputs Available): No

Unlock precision and efficiency in your industrial automation with the Omron Servo Drive R88D-1SN02H-ECT. This cutting-edge servo drive offers advanced features, including EtherCAT communication, high-speed response, and seamless integration with Omron’s extensive range of automation solutions. Ideal for applications requiring high performance and reliability, the R88D-1SN02H-ECT ensures precise control and optimal performance. Partner with Ribhu International, your trusted supplier, and enhance your automation processes with this state-of-the-art servo drive.

Key Features of Omron Servo Drive R88D-1SN02H-ECT

1. EtherCAT Communication: Ensures high-speed, real-time communication for synchronized multi-axis control.
2. High-Speed Response: Delivers rapid acceleration and deceleration for precise motion control.
3. Compact Design: Space-saving design ideal for various industrial applications.
4. Flexible Operation Modes: Supports position, speed, and torque control modes for versatile applications.
5. Advanced Tuning Functions: Automatic and manual tuning functions for optimal performance.
6. High-Resolution Encoder: Ensures accurate positioning and feedback for enhanced precision.
7. Safety Features: Includes overcurrent, overvoltage, and overheat protection to ensure safe operation.
8. Easy Integration: Seamless integration with Omron’s automation ecosystem for streamlined operations.

FAQ

Q1: What is the maximum output power of the Omron Servo Drive R88D-1SN02H-ECT?

• The Omron Servo Drive R88D-1SN02H-ECT has a maximum output power of 200W, making it suitable for various precision control applications.

Q2: Can the R88D-1SN02H-ECT be integrated with other brands of controllers?

• Yes, while it is optimized for use with Omron controllers, the R88D-1SN02H-ECT can be integrated with other brands’ controllers that support EtherCAT communication.

Q3: What types of motors are compatible with this servo drive?

• The R88D-1SN02H-ECT is compatible with Omron’s range of rotary and linear servo motors, ensuring flexibility in various applications.

Q4: Does this servo drive support safety functions?

• Yes, the R88D-1SN02H-ECT includes built-in safety features such as overcurrent, overvoltage, and overheat protection to ensure safe and reliable operation.

Q5: How easy is it to set up and configure the Omron Servo Drive?

• The servo drive is designed for easy setup and configuration, with user-friendly software tools and intuitive interfaces that simplify the tuning and integration process.

Q6: What is EtherCAT, and why is it beneficial for industrial automation?

• EtherCAT (Ethernet for Control Automation Technology) is a high-performance Ethernet-based communication protocol designed for real-time control. It offers benefits like low latency, high synchronization accuracy, and efficient data handling, which are crucial for high-speed automation systems.

Q7: Is technical support available for the Omron Servo Drive R88D-1SN02H-ECT?

• Yes, Ribhu International provides comprehensive technical support and service for the Omron Servo Drive R88D-1SN02H-ECT to ensure smooth implementation and operation in your automation systems.
