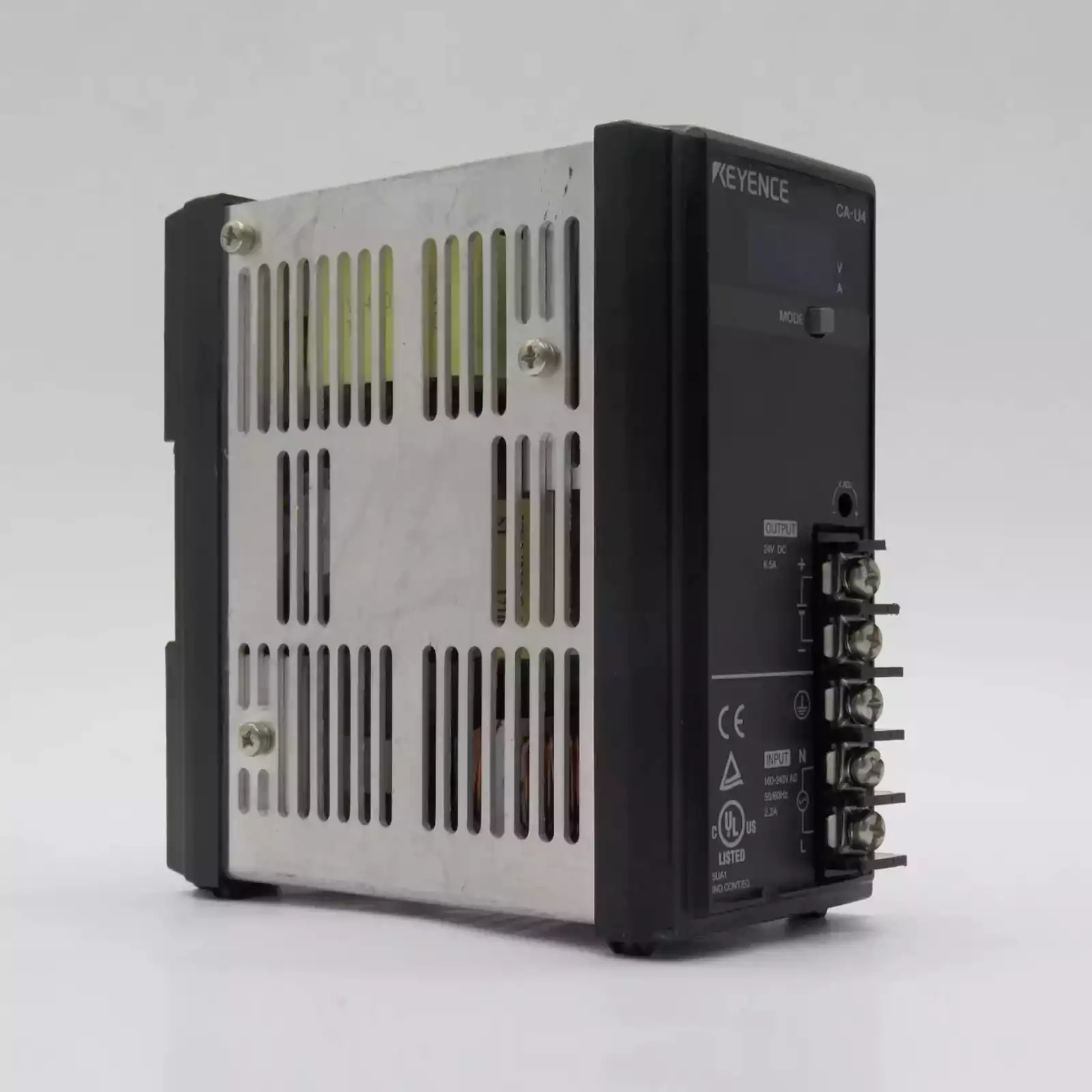

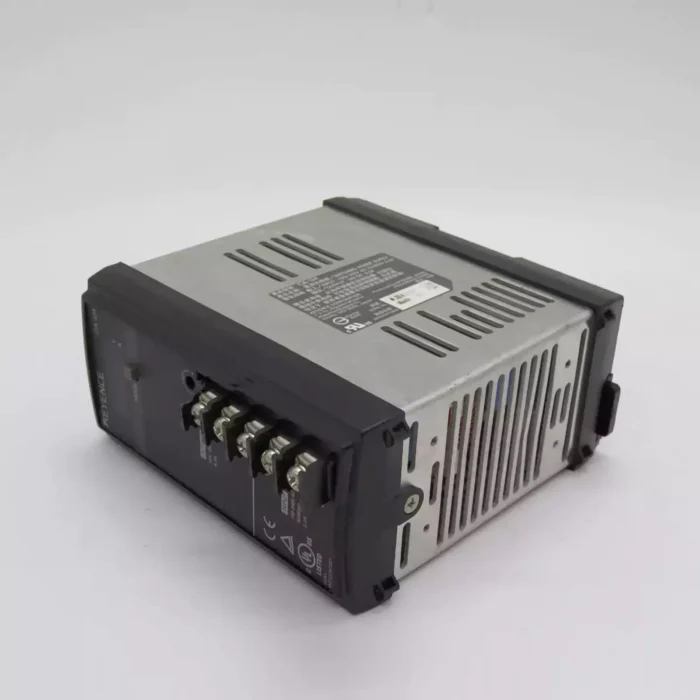

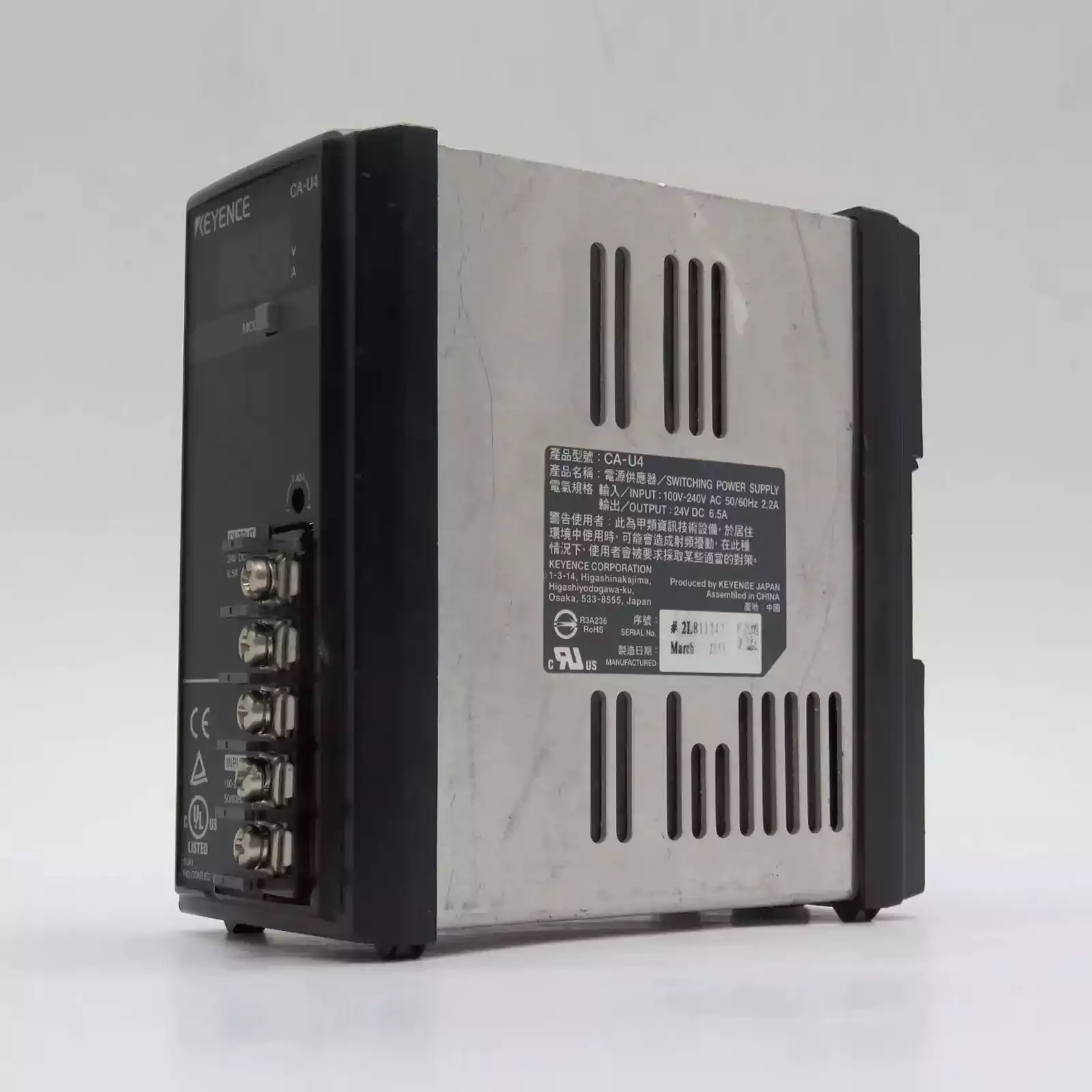

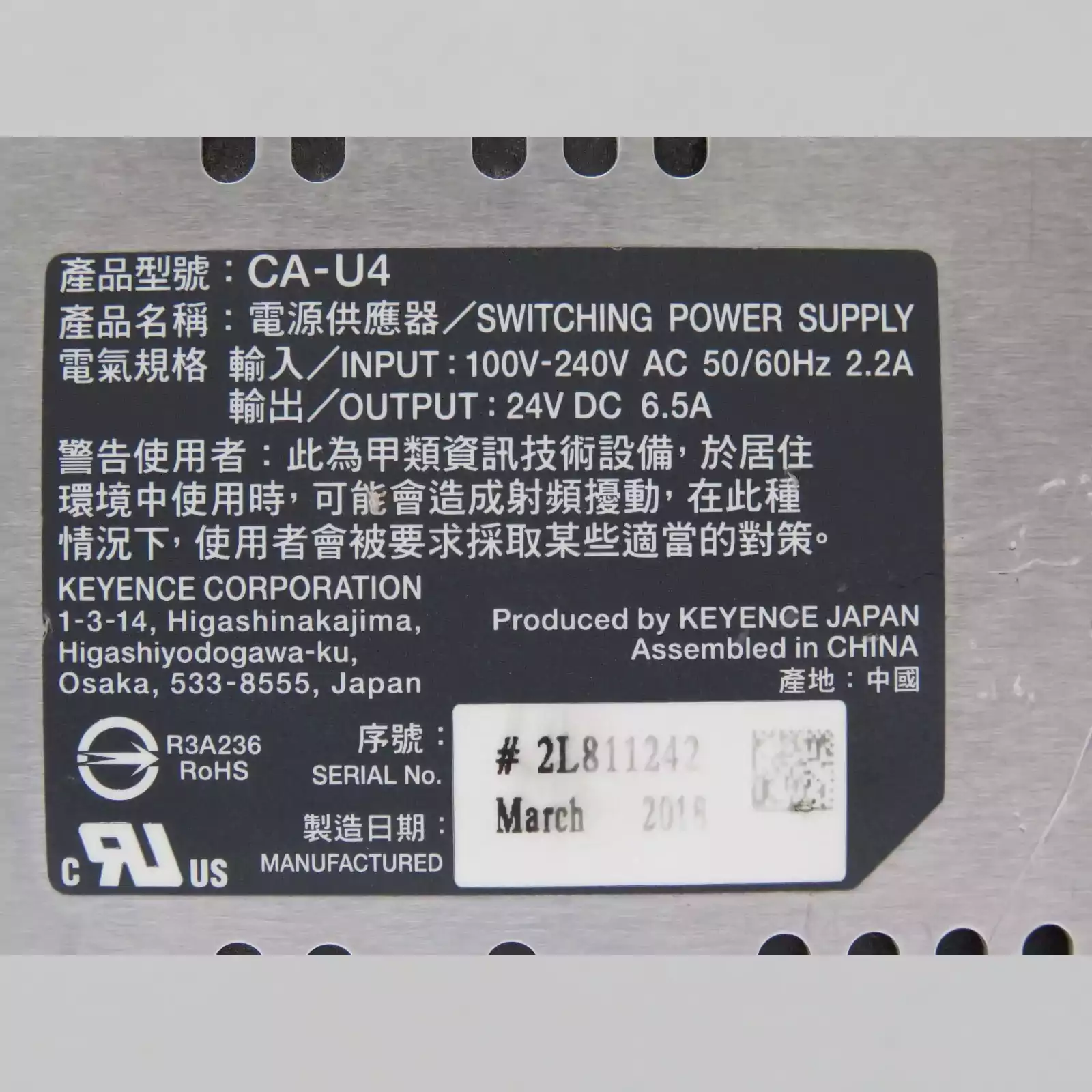

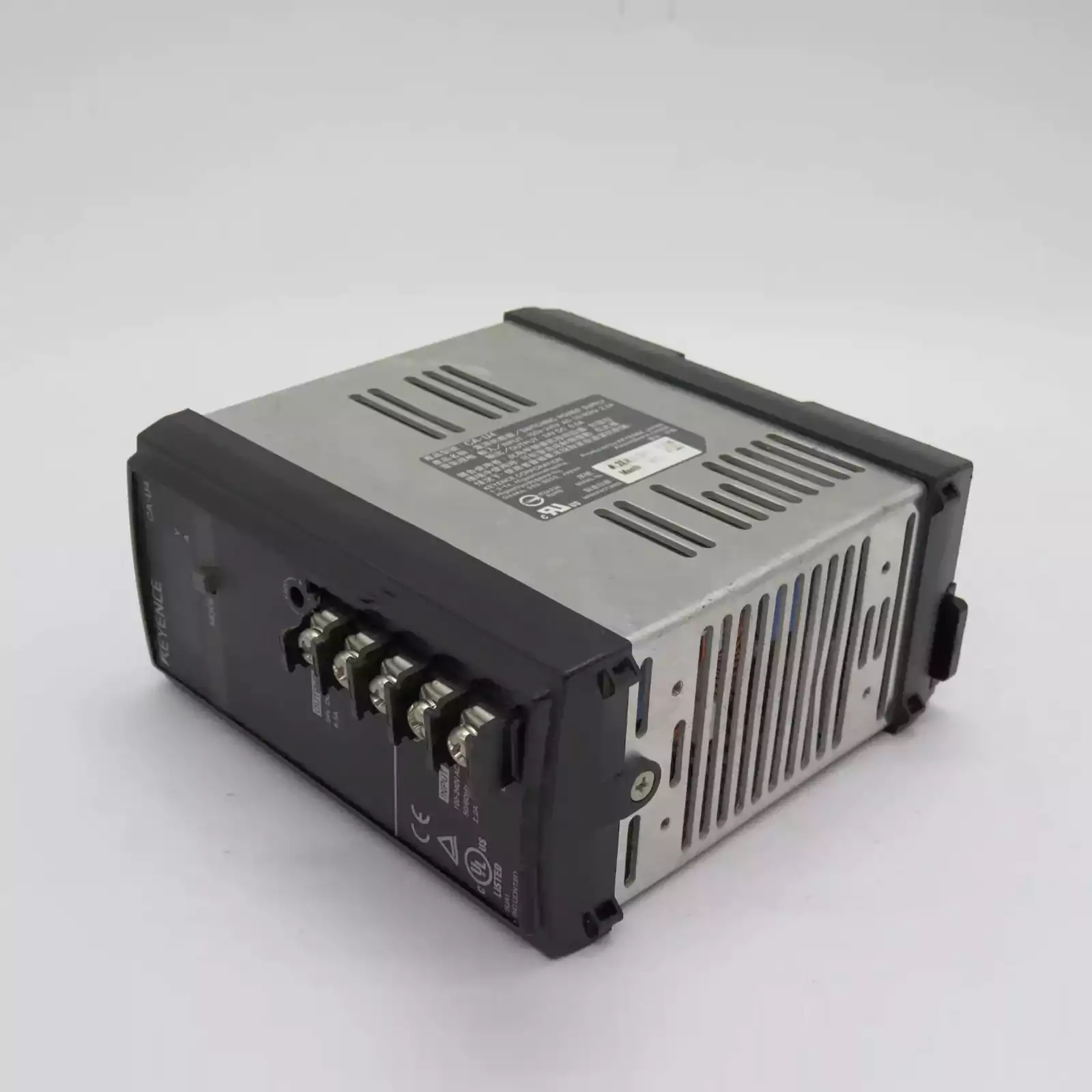

- CAU4
- POWER SUPPLY
- ULTRA COMPACT
- SWITCH-MODE
- INPUT 100-240 VAC
- 2.2 AMP
- 50/60 HZ
- OUTPUT 24 VDC
- 6.5 AMP
- AMBIENT TEMP -10 TO +55 DEG CELSIUS
- 14 TO 131 DEG FAHRENHEIT
- SCREW TERMINALS
- DIN RAIL MOUNTING
Specifications
| Part | CA-U4 |
|---|---|
| Category | Power Supplies |
| Subcategory | Power Supply |
Applications:
-
- Type: 24 VDC Power supply
- Input Conditions:
- Efficiency: 82% (100 VAC) / 85% (200 VAC) (at 100% load)
- Rated Input Current: 2.2 A or less (100 VAC) / 1.1 A or less (200 VAC)
- Output Conditions:
- Rated Output Voltage: 24 VDC
- Rated Output Current: 6.5A
- Protection:
- Overvoltage Protection:
- Constant current drop method, automatic recovery (activates at 26.4 V or more)
- Voltage interruption method (recovers when input is applied again)
- Overvoltage Protection:
- Applicable Standards:
- Safety Standards: UL508, UL60950-1; C-UL: CSA C22.2 No.14-M95, CSA C22.2 No.60950-1-03; EN: EN60950-1, EN50178; IEC: IEC60950-1
- EMC Standard: FCC Part15B Class A, EN55011 Class A, EN61000-6-2
- Limits for Harmonic Current Emissions: EN61000-3-2
- Environmental Resistance:
- Ambient Temperature: -10 to +55?C (14 to 131?F) (No freezing)
- Storage Temperature: -20 to +70?C (-4 to 158?F) (No freezing)
- Relative Humidity: 85%RH or less (No condensation)
