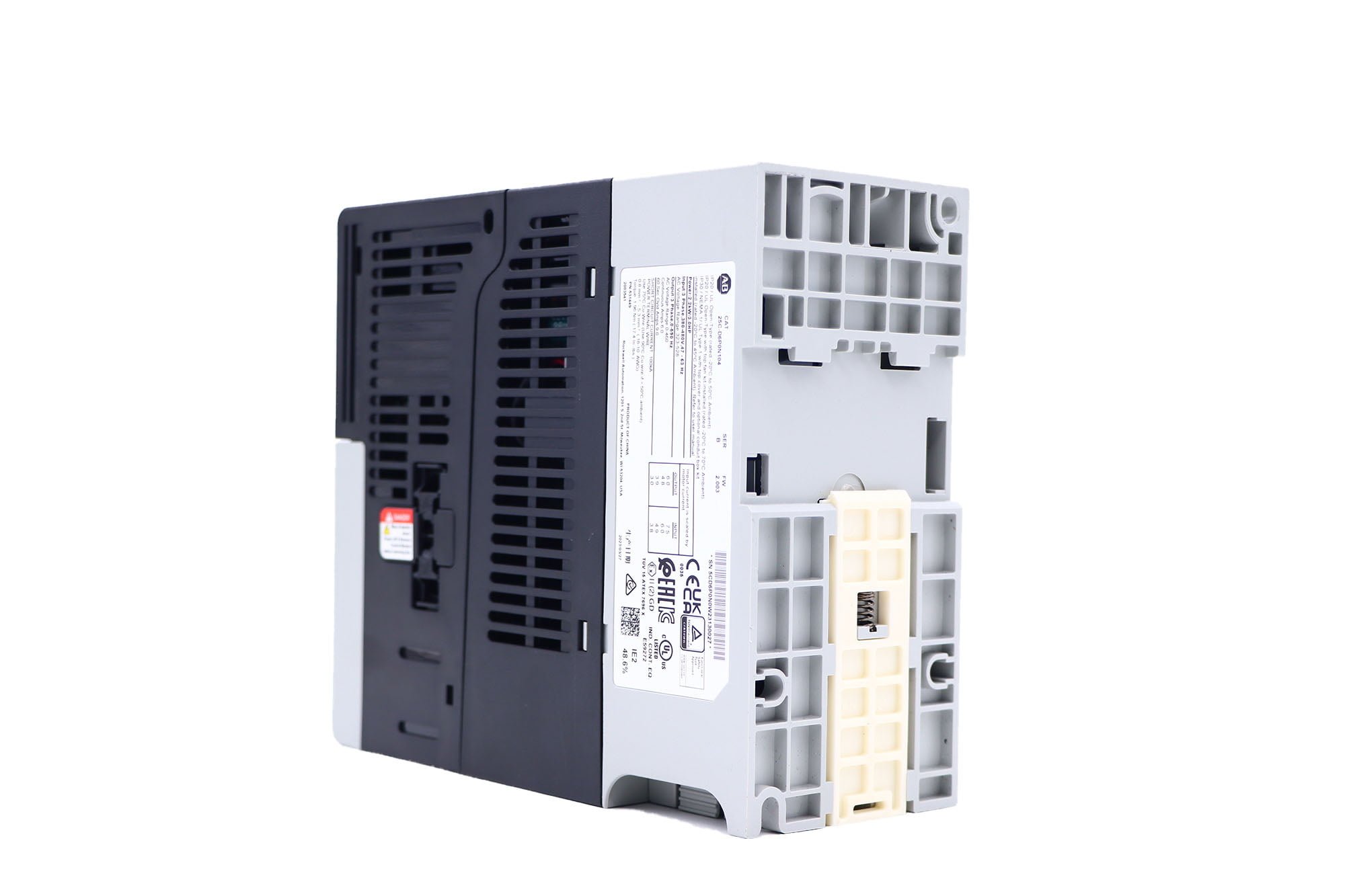

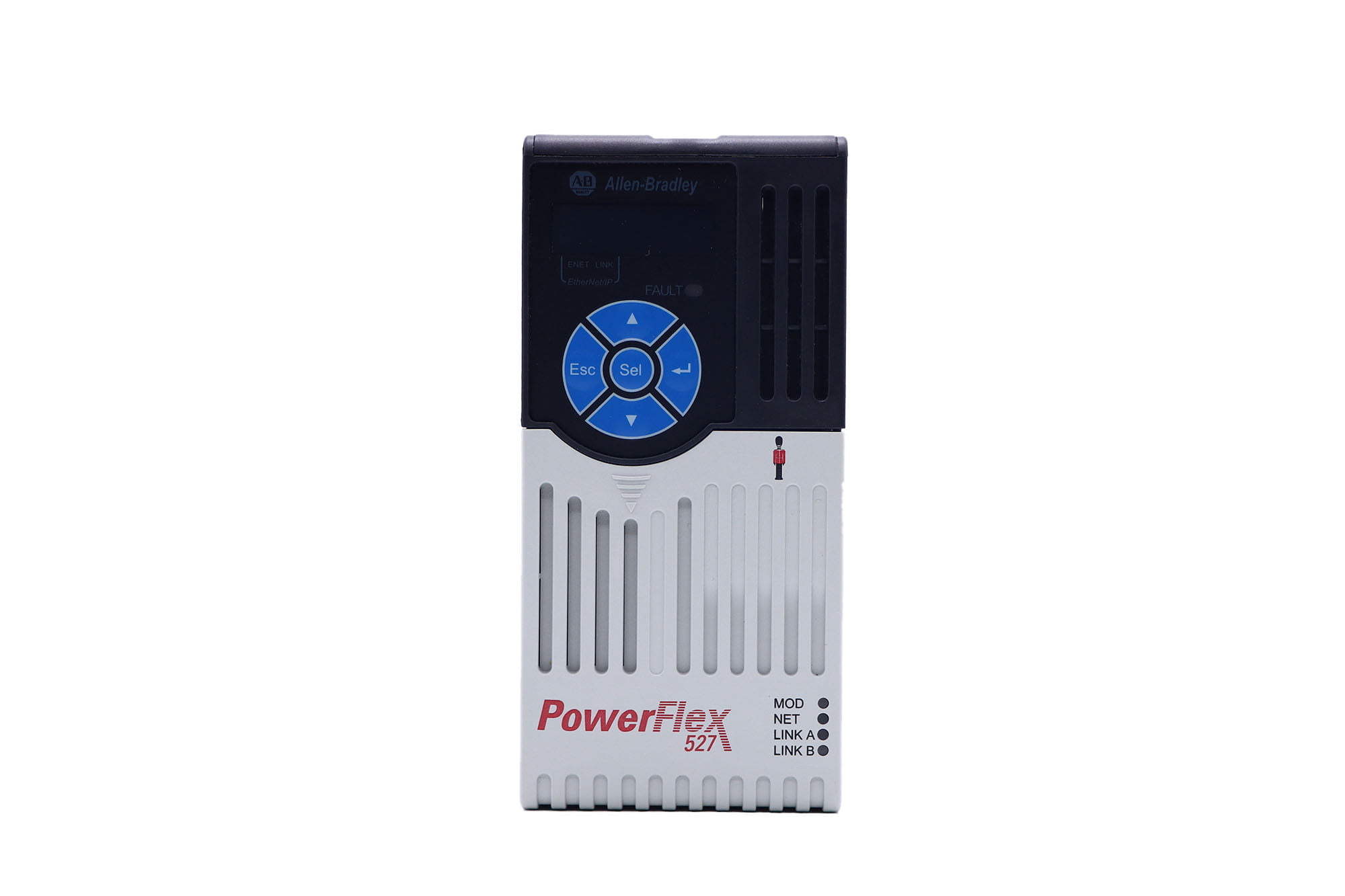

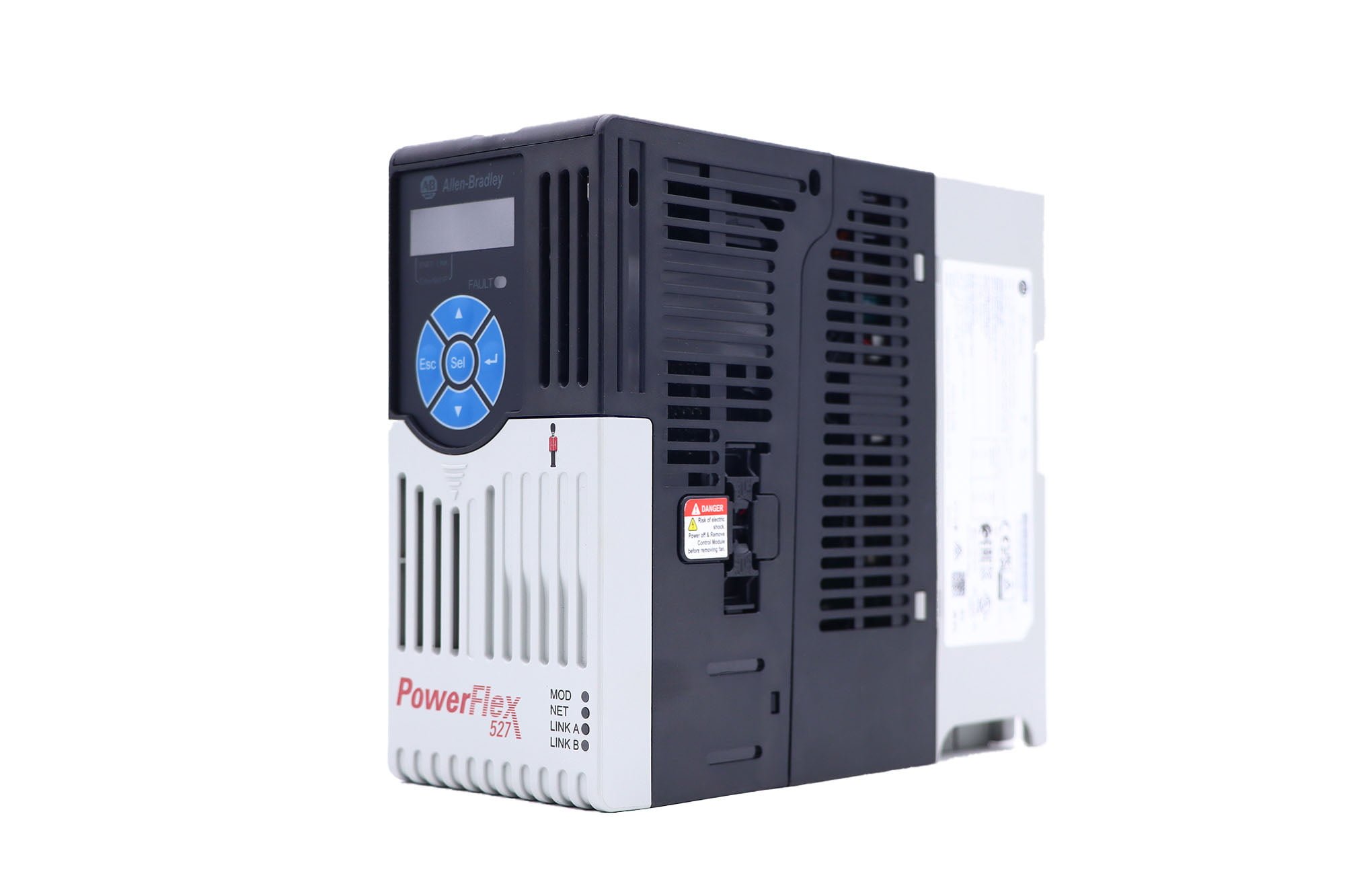

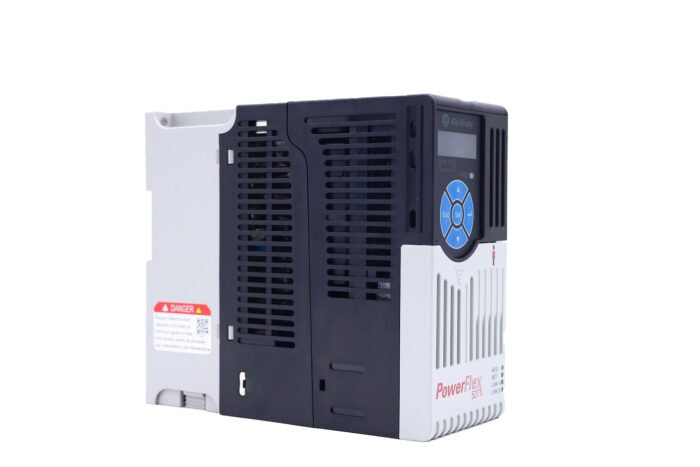

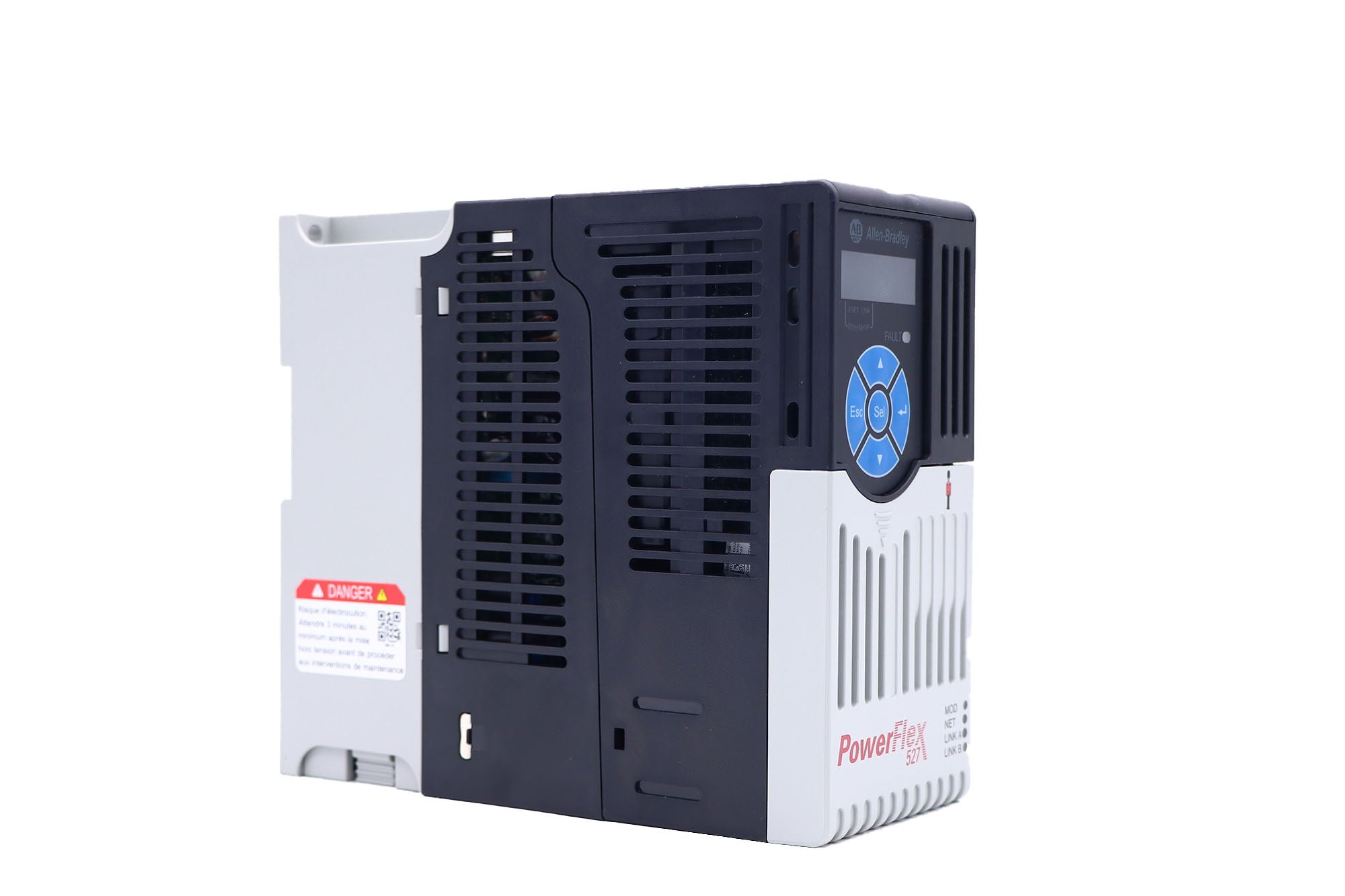

Allen Bradley VFD 25C-D6PON104
- 25CD6P0N104
- AC DRIVE
- FREQUENCY CONTROL
- POWERFLEX 527
- 480 VAC
- 3 PHASE
- 6 AMP
- 2.2 KW / 3 HP
- IP20 NEMA TYPE OPEN
- STANDARD INTERFACE MODULE
- NO FILTER
- STANDARD BRAKING
Specifications
| Part | 25C-D6P0N104 |
| Manufacturer | ALLEN BRADLEY |
| Category | Drives |
| Subcategory | Drive |
| Drive Type | POWERFLEX 527 |
| Voltage Rating | 480 VAC, 3 PHASE |
| Rating | 6 AMP, 1.1 KW / 1.5 HP |
| Enclosure | IP20 NEMA TYPE OPEN |
| Interface Module | STANDARD INTERFACE MODULE |
| Emission Class | NO FILTER |
| Braking | STANDARD BRAKING |
Additional Specifications
- Input Voltage Range:380-480VAC, 3-phase
- Output Voltage:0-460VAC, 3-Phase
- 25C-D6PON104:6.0 A
- Power:2.2 kW (3.0 HP) for both normal and heavy-duty operation
- Communication Interface:Integral Dual Ethernet
- Network Topologies Support:Linear, Star, and Ring
- Safety:Built-in hardwired Safe Torque Off, SIL 3 / PLe Cat 3
- Integrated Safety:Controller-based safety delivered via EtherNet/IP
- Mounting:DIN rail mounting feature on A, B, and C frame drives; panel mounting available
- Zero Stacking:Allowed for ambient temperatures up to 45 C
Discover the Allen Bradley VFD 25C-D6PON104 at Ribhu International. This reliable variable frequency drive (VFD) offers superior motor control for a range of applications. Shop now for competitive prices and expert support.
Key Features
- High Performance Motor Control: Provides precise speed control, improved torque, and enhanced motor performance.
- Energy Efficiency: Reduces energy consumption and operational costs by optimizing motor performance.
- User-Friendly Interface: Easy-to-use interface with intuitive controls and clear display for quick setup and operation.
- Compact Design: Space-saving design allows for flexible installation in various industrial environments.
- Advanced Protection: Built-in protection features safeguard against overcurrent, overvoltage, and overheating, ensuring long-term reliability.
- Communication Options: Supports multiple communication protocols for seamless integration into existing systems.
- Flexible Configuration: Wide range of configurable parameters to suit specific application needs.
FAQ
Q: What is a Variable Frequency Drive (VFD)?
A: A VFD is a type of motor controller that drives an electric motor by varying the frequency and voltage of its power supply. It allows precise control of motor speed and torque.
Q: What applications is the Allen Bradley VFD 25C-D6PON104 suitable for?
A: This VFD is ideal for various industrial applications, including conveyors, pumps, fans, and other machinery that requires precise motor control.
Q: How does the Allen Bradley VFD 25C-D6PON104 improve energy efficiency?
A: By adjusting the motor speed to match the required load, this VFD reduces energy consumption and lowers operational costs.
