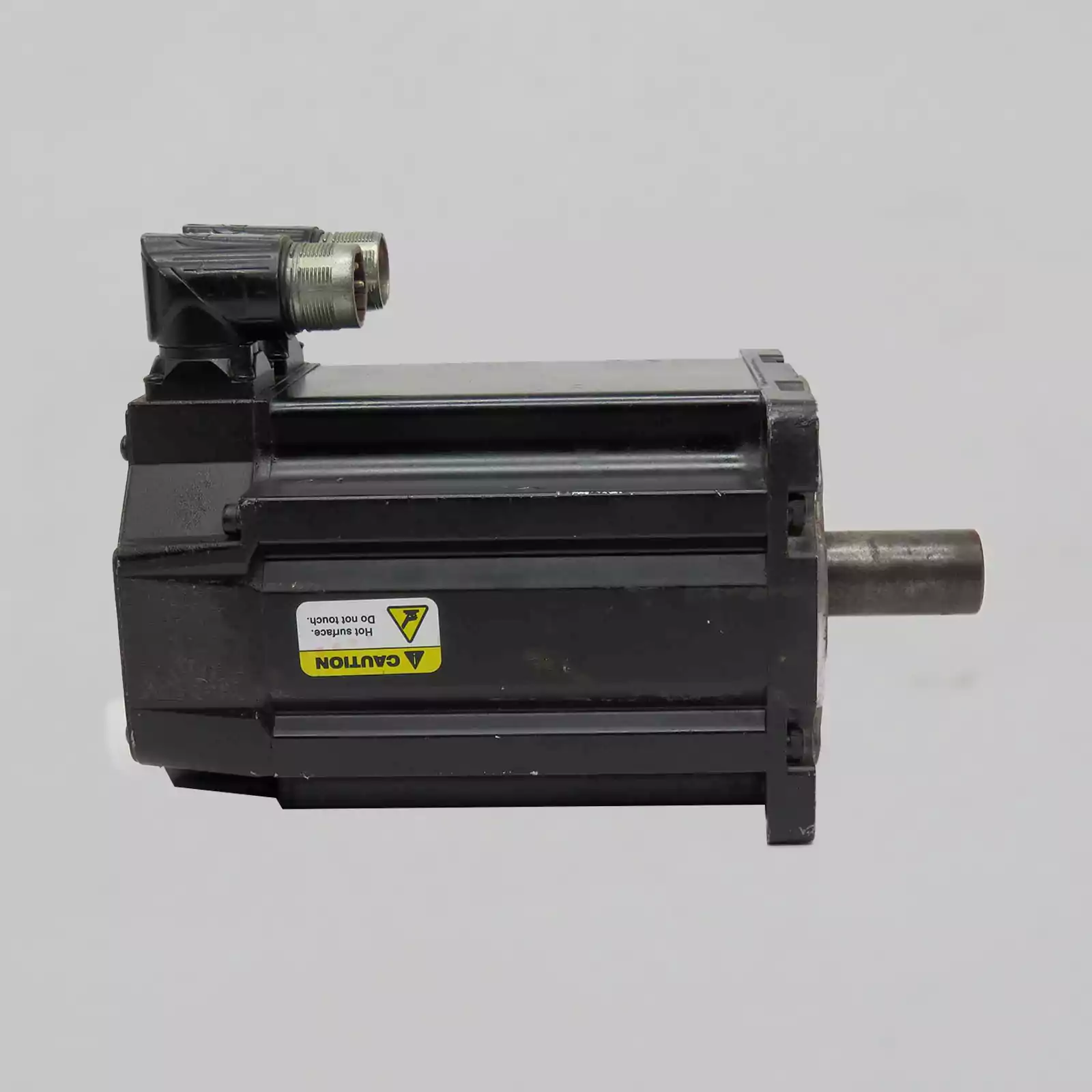

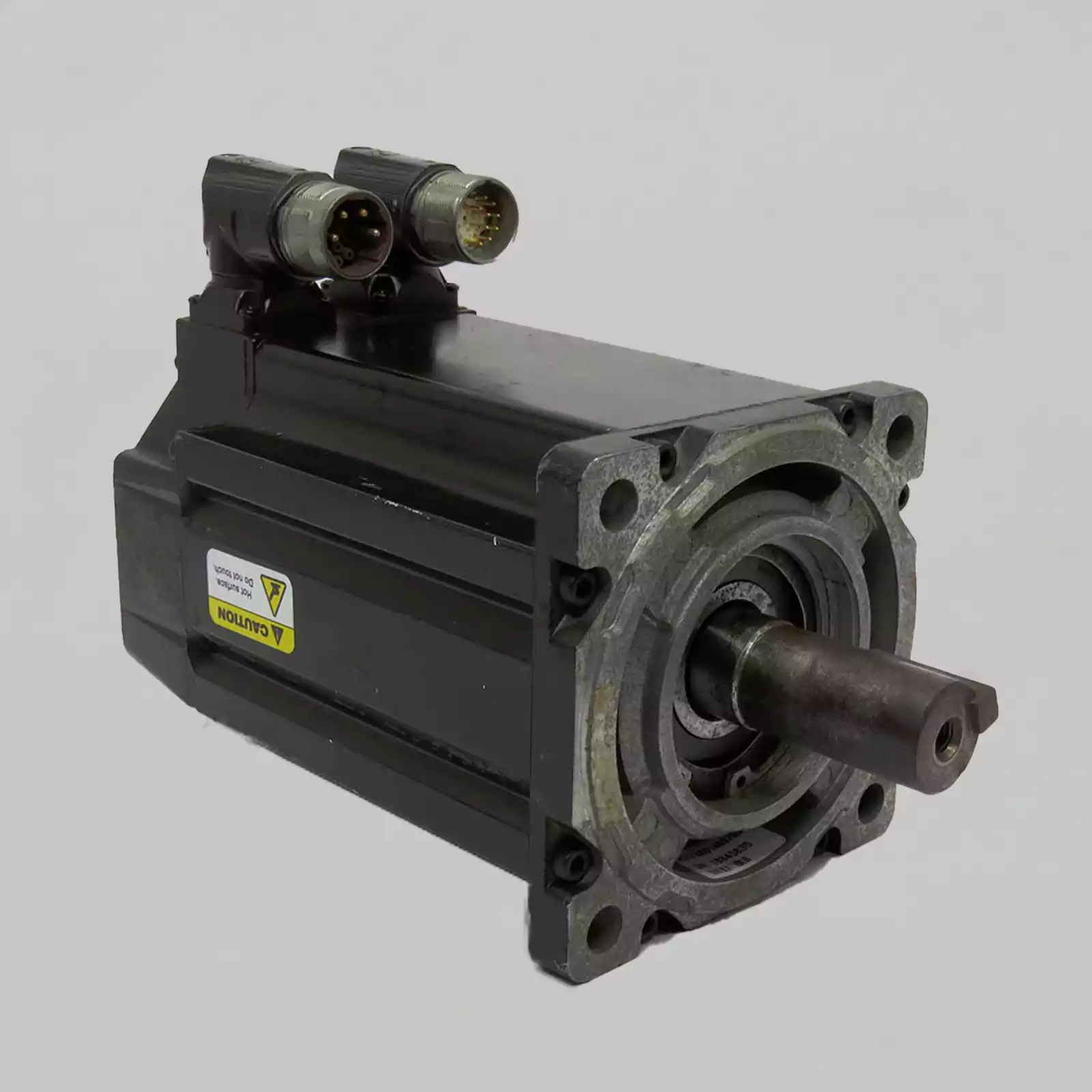

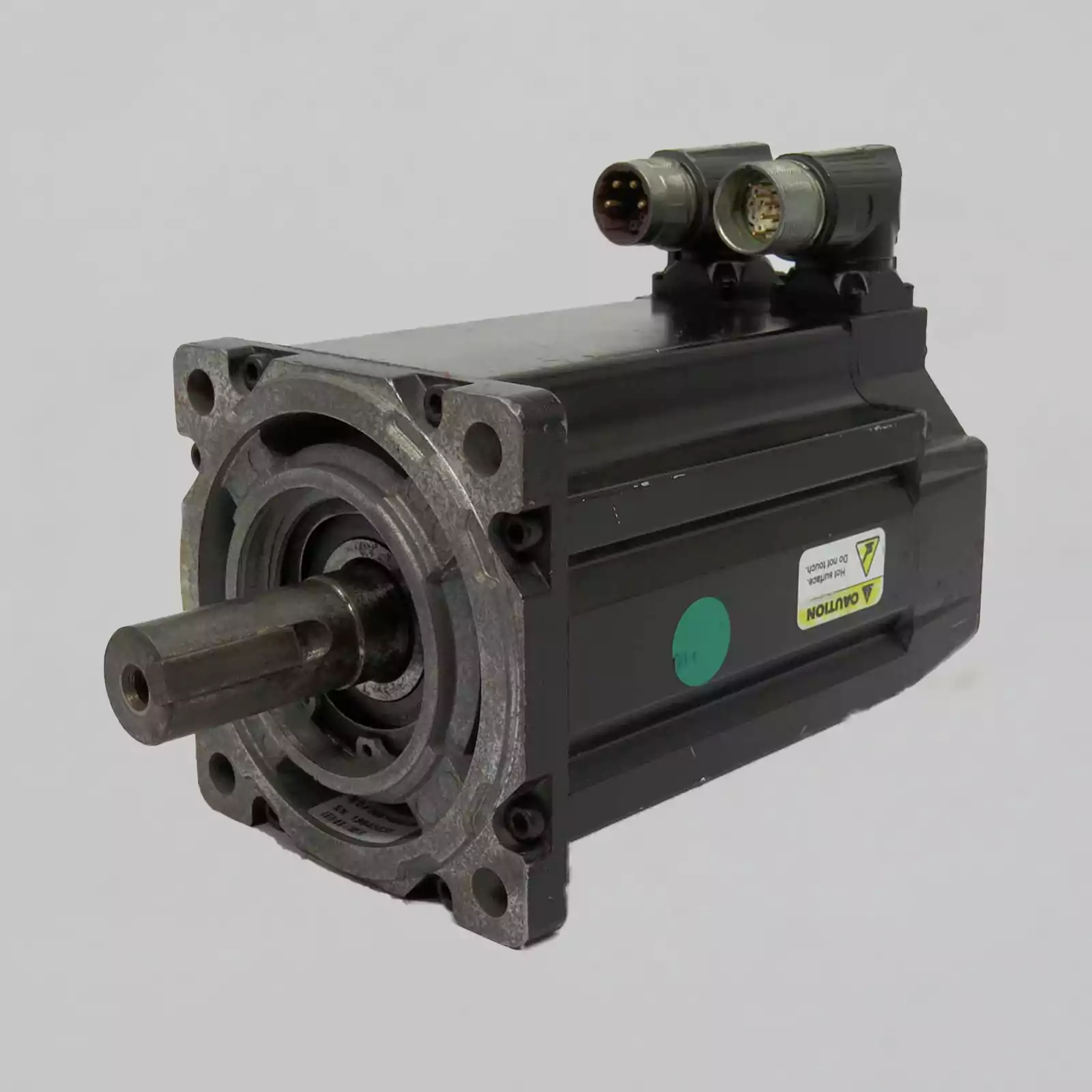

ALLEN BRADLEY MPL-B4530F-MJ72AA SERVO MOTOR

• MPLB4530FMJ72AA
• SERVO MOTOR
• MP SERIES
• KINETIX
• PERMANENT MAGNET ROTARY MOTOR
• LOW INERTIA
• 480 VAC
• 130 MM FRAME
• 3 INCH STACK LENGTH
• 3000 RPM
• MULTI-TURN HIGH RES ENCODER
• SHAFT KEY / NO SEAL
• CIRCULAR DIN CONNECTOR
• RIGHT ANGLE
• 180 ROTATABLE
• NO BRAKE
• IEC METRIC

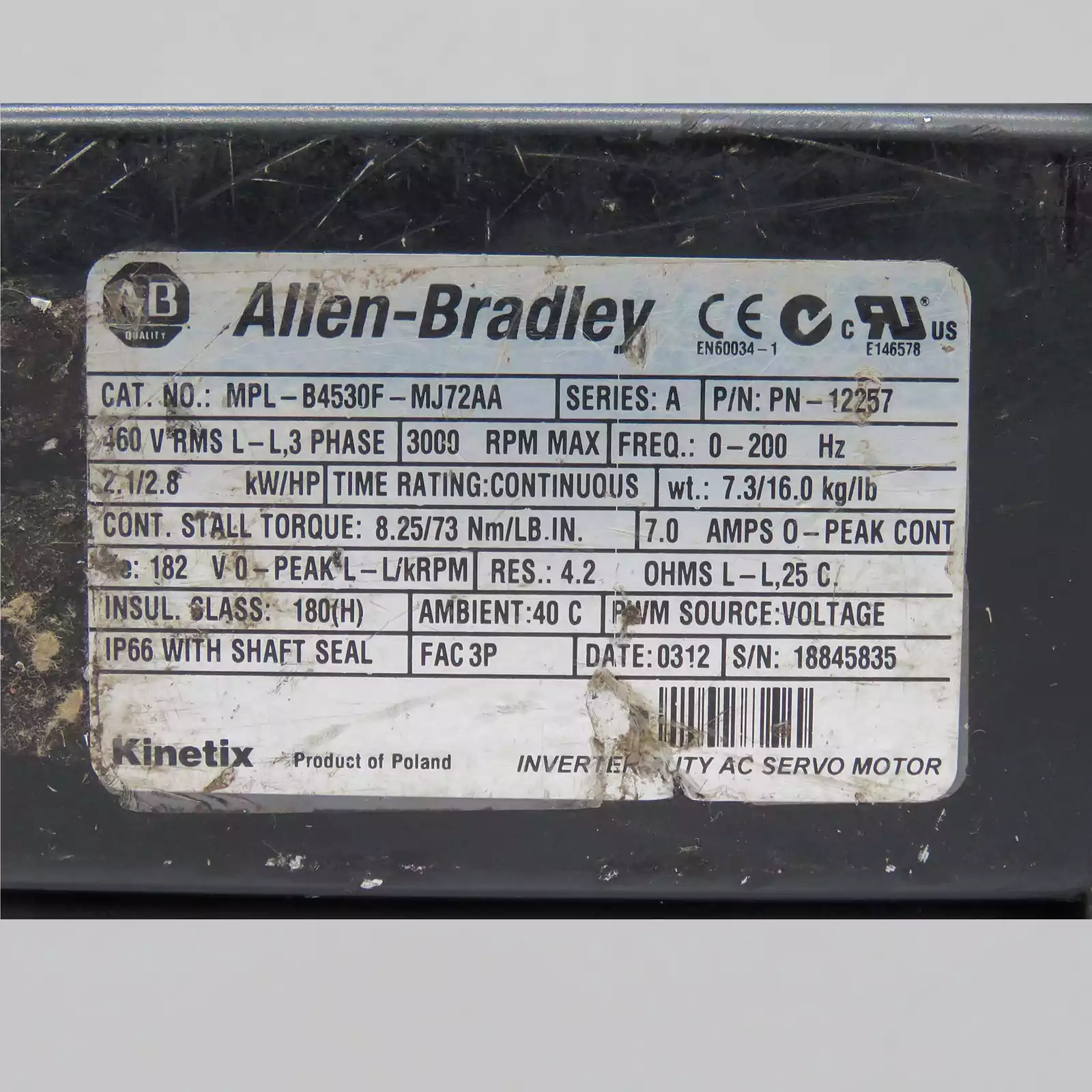

Specifications

About

The Allen Bradley MPL-B4530F-MJ72AA Servo Motor is a part of the Kinetix® 6000 series, designed to provide high-performance motion control in demanding industrial applications. Engineered with precision, this servo motor ensures accurate and reliable performance in a wide range of environments, making it ideal for applications requiring high torque, speed, and efficiency.

FAQ

What are the key features of the Servo Motor?

The Servo Motor features high torque density, low inertia, advanced feedback options, a compact design, and durable construction. These attributes make it suitable for demanding industrial applications requiring precise motion control.

What is the continuous stall torque of the Servo Motor?

The continuous stall torque of this servo motor is 6.4 Nm, providing stable torque output under load.

What type of feedback device is used in the Servo Motor?

This servo motor is equipped with a high-resolution encoder, which offers precise feedback for accurate speed and position control.

Is the Servo Motor suitable for environments with space constraints?

Yes, the MPL-B4530F-MJ72AA has a compact and lightweight design, making it ideal for integration into space-constrained environments without compromising performance.

What industries or applications are best suited for this servo motor?

The MPL-B4530F-MJ72AA is perfect for applications such as packaging machines, material handling systems, machine tools, and textile machinery. It is well-suited for any application requiring high precision, reliability, and efficiency.
