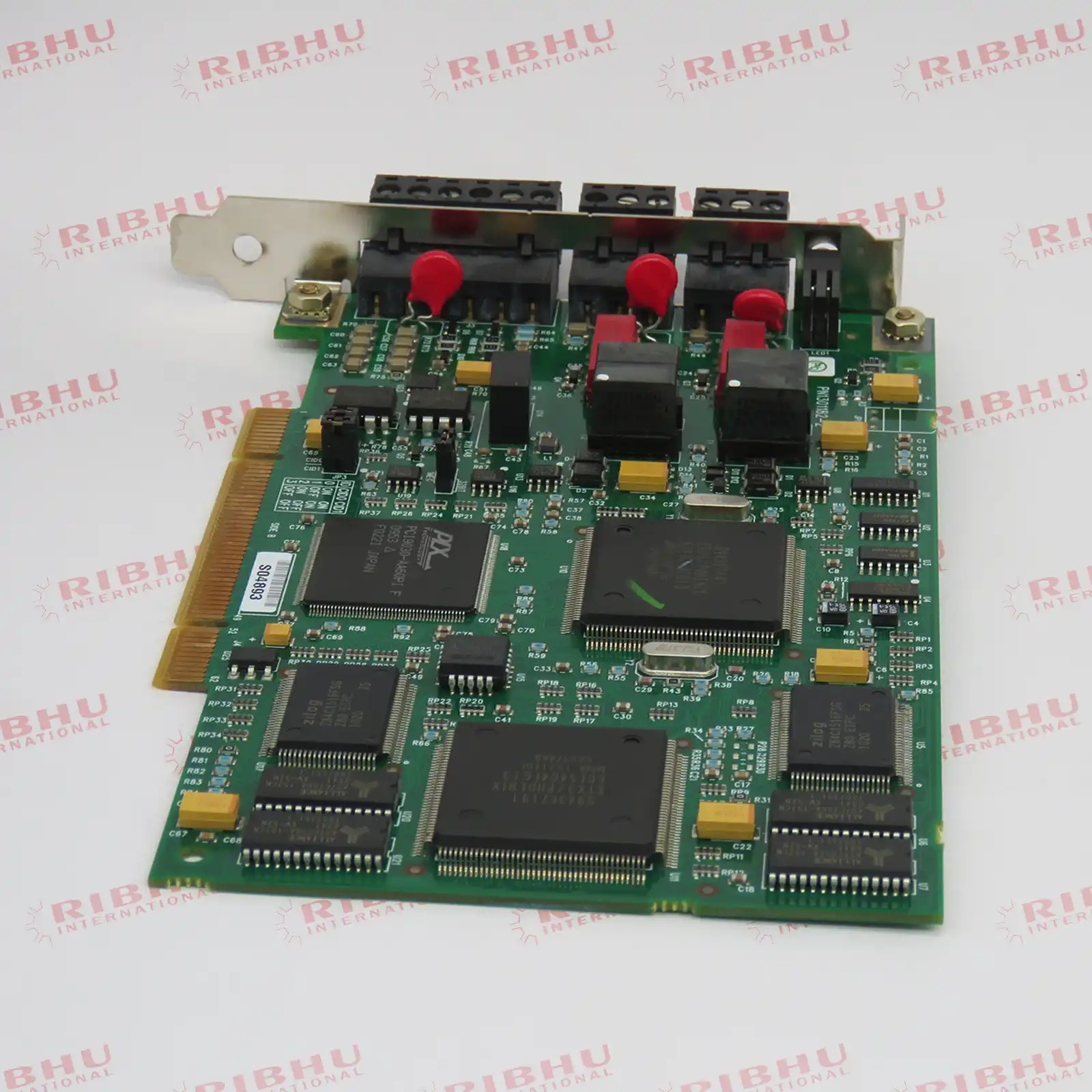

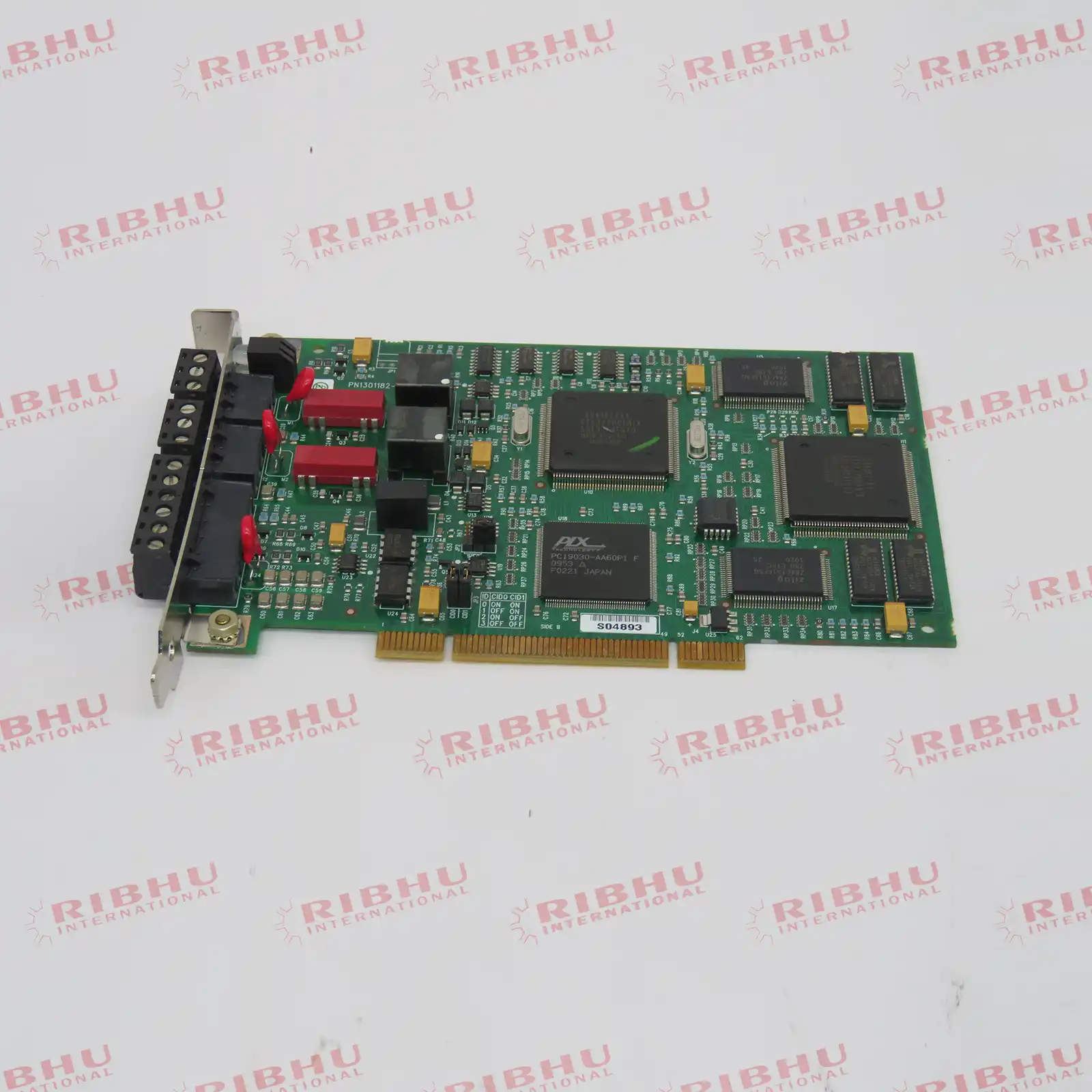

Allen Bradley PCI Communication Card 1784-PKTX

Specification

• Model Number: 1784-PKTX
• Type: PCI Communication Card
• Bus Interface: PCI 2.2
• Number of Channels: 2
• Protocols Supported:
  • DH+ (Data Highway Plus)
  • Remote I/O
• DH+ Network Speed: 57.6 kbps, 115.2 kbps, 230.4 kbps
• Remote I/O Network Speed: 57.6 kbps, 115.2 kbps, 230.4 kbps
• Operating System Compatibility: Compatible with Windows-based operating systems (specific versions might vary)
• LED Indicators: Status LEDs for DH+ and Remote I/O channels

The Allen Bradley 1784-PKTX PCI Communication Card is a high-performance interface solution designed for seamless integration with ControlLogix, PLC-5, and SLC 500 systems. This communication card facilitates efficient data exchange and robust network connectivity, ensuring optimal performance for your industrial automation processes. Ideal for demanding industrial environments, the 1784-PKTX offers reliable communication, enhancing the productivity and efficiency of your operations.

Key Features:

• Versatile Connectivity: Supports multiple network protocols, including DH+, DH-485, and Remote I/O, offering flexible integration options.
• High-Speed Data Transfer: Ensures rapid and reliable communication between your PLC systems and network devices.
• Plug-and-Play Installation: Easy installation into a standard PCI slot, minimizing downtime and setup complexity.
• Robust Performance: Designed to withstand industrial conditions, providing reliable and durable performance.
• Advanced Diagnostics: Features built-in diagnostics for real-time monitoring and troubleshooting.

Discover the Allen Bradley 1784-PKTX PCI Communication Card at Ribhu International and elevate your automation systems with superior communication capabilities.

FAQs

Q1: What types of networks does the Allen Bradley PCI Communication Card 1784-PKTX support?
A1: The 1784-PKTX supports multiple network protocols, including Data Highway Plus (DH+), DH-485, and Remote I/O, providing versatile connectivity options for various industrial applications.

Q2: How do I install the Allen Bradley PCI Communication Card 1784-PKTX?
A2: The 1784-PKTX is designed for easy installation. Simply insert the card into an available PCI slot on your computer or industrial PC, and follow the installation instructions provided in the user manual.

Q3: Can the Allen Bradley PCI Communication Card 1784-PKTX be used with ControlLogix, PLC-5, and SLC 500 systems?
A3: Yes, the 1784-PKTX is compatible with ControlLogix, PLC-5, and SLC 500 systems, making it a versatile solution for various Allen Bradley PLC configurations.

Q4: What are the diagnostic features of the Allen Bradley PCI Communication Card 1784-PKTX?
A4: The 1784-PKTX includes built-in diagnostics that allow for real-time monitoring and troubleshooting, helping to maintain optimal performance and quickly address any issues that may arise.
